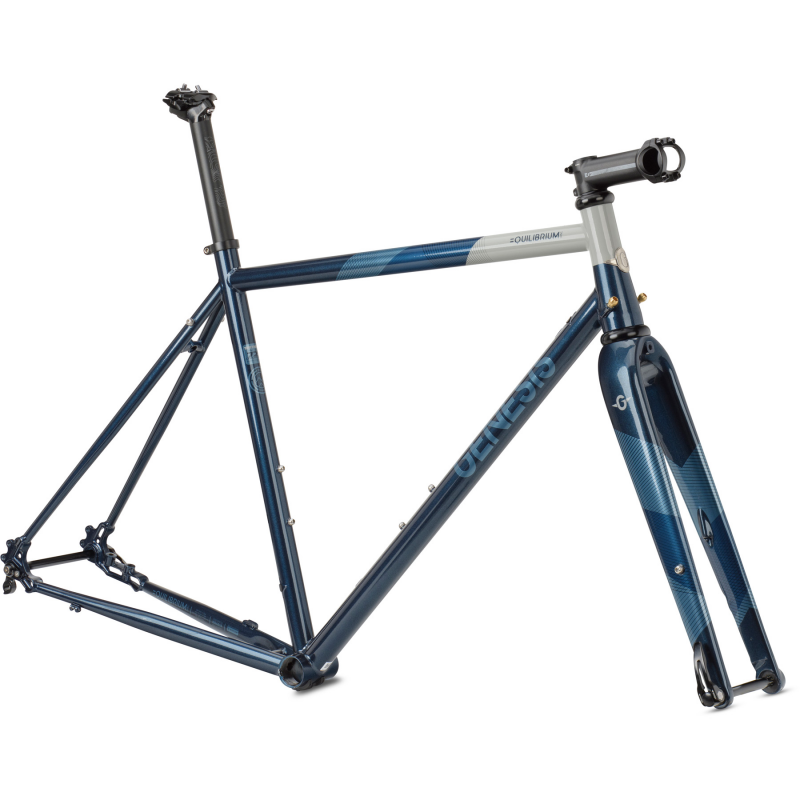

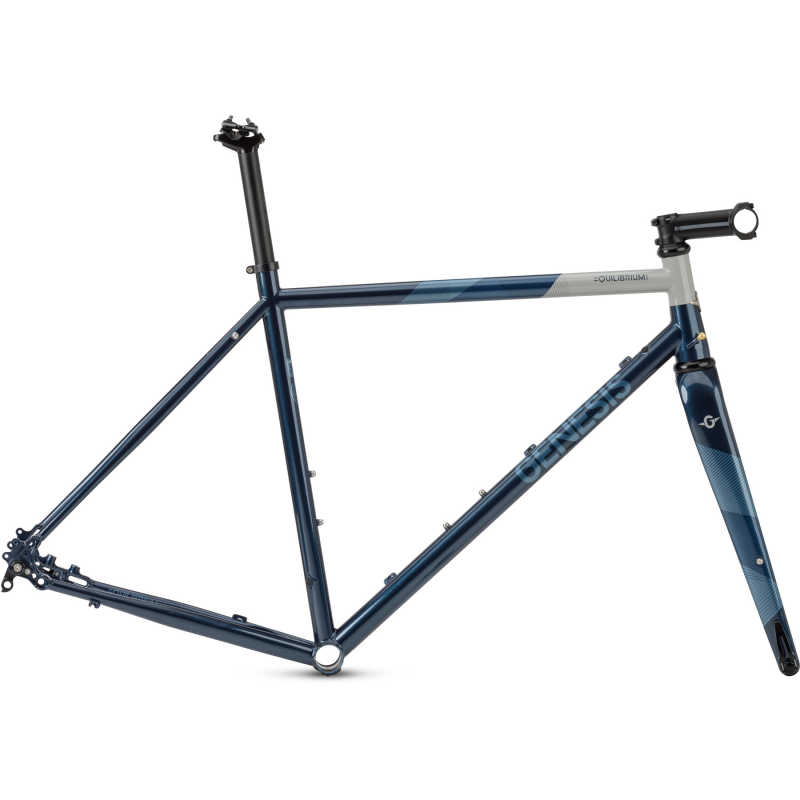

GENESIS 2021 Equilibrium Disc Telaio + Forcella

FEATURES

- Reynolds 725 CrMo tubeset.

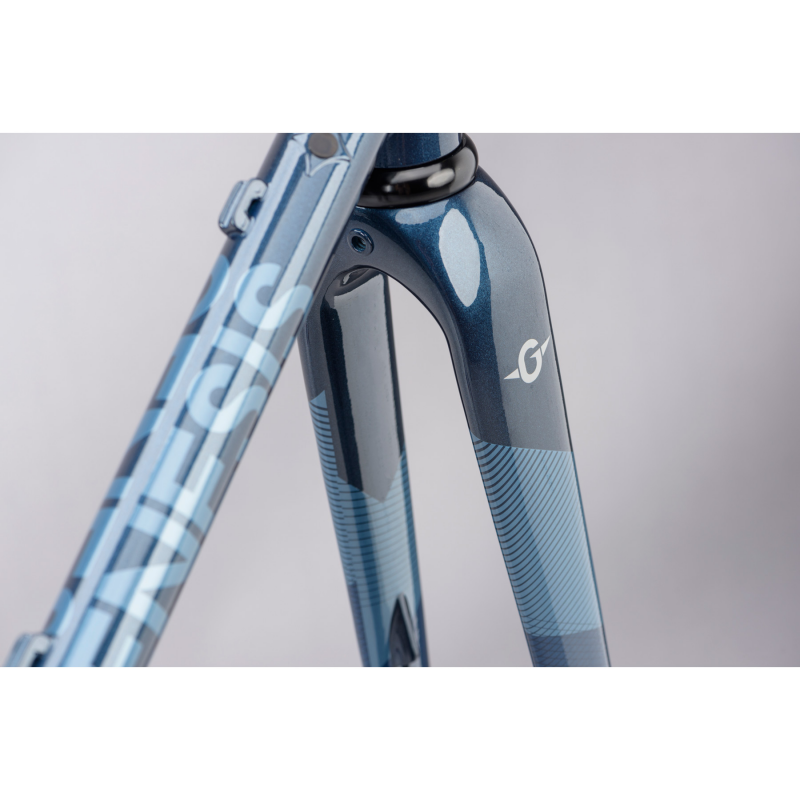

- Full carbon fork.

- 12mm thru axle standard.

- Headset, axles and seat collar included.

SPECS

Frame Reynolds 725 Heat-Treated Chromoly

Fork Genesis Carbon Road Disc

Headset F17A Tapered 1 1/8" - 1 1/5"

Hanger GNSPR40002

ADDITONAL INFO

Product Code GN21830

Warranty Lifetime for Frame and Fork

Weight 3.12kg

Frame Weight Limit No Weight Limit

Fork Steerer Size 1 1/8” - 1 1/5”

Fork Spec

XS A-C = 397 Offset = 50 Rake/ Trail = 63

SM A-C = 397 Offset = 50 Rake/ Trail = 63

MD A-C = 397 Offset = 50 Rake/ Trail = 60

LG A-C = 397 Offset = 50 Rake/ Trail = 60

XL A-C = 397 Offset = 50 Rake/ Trail = 60

Wheel Size Options n/a

Max Tyre Clearance 700 x 32

Hub Size/ Spacing Front 100mm, Rear 142mm

Brake Mount Type Flat Mount 140

Front Mech Size/ Compatibility Band On 28.6mm

Max Chainring Size 52/39

Seat Tube/Clamp Size 27.2mm/29.8mm

Mech Hanger Type & Part Code Replaceable - GNSPR40002

Colour Blua Lipa

Colour Code RAL 620-M/ RAL 7042

MOUNTS

Mudguard Mounts Yes

Rack Mounts Yes

Bottle Cage Mounts Yes

Additonal Mounts n/a

GEOMETRY XS S M L XL

Seat Tube 460 490 530 550 580

Top Tube 522 540 559 578 600

Frame Reach 365 375 386 395 405

Frame Stack 545 559 584 599 618

Head Tube 105 120 140 160 180

Head Angle 71 71.5 73 72 72

Seat Angle 74 73.5 73.5 73 72.5

Chainstay 420 420 420 420 420

BB Drop 72 72 72 72 72

Wheelbase 990 1000 1003 1019 1035

Fork Offset 50 50 50 50 50

Standover 749 773 815 826 899
