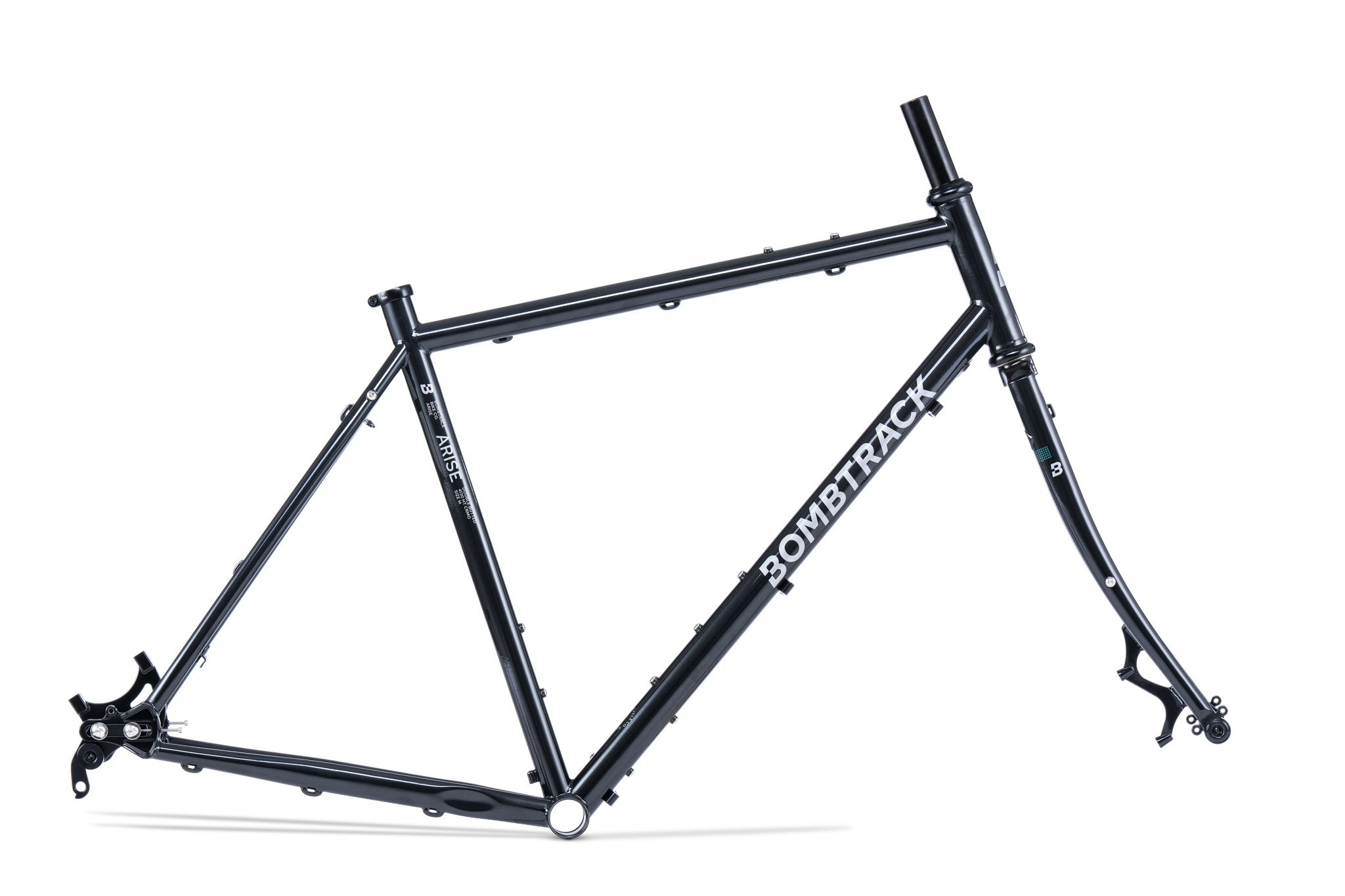

BOMBTRACK Arise Set Telaio e Forcella - Metallic Black

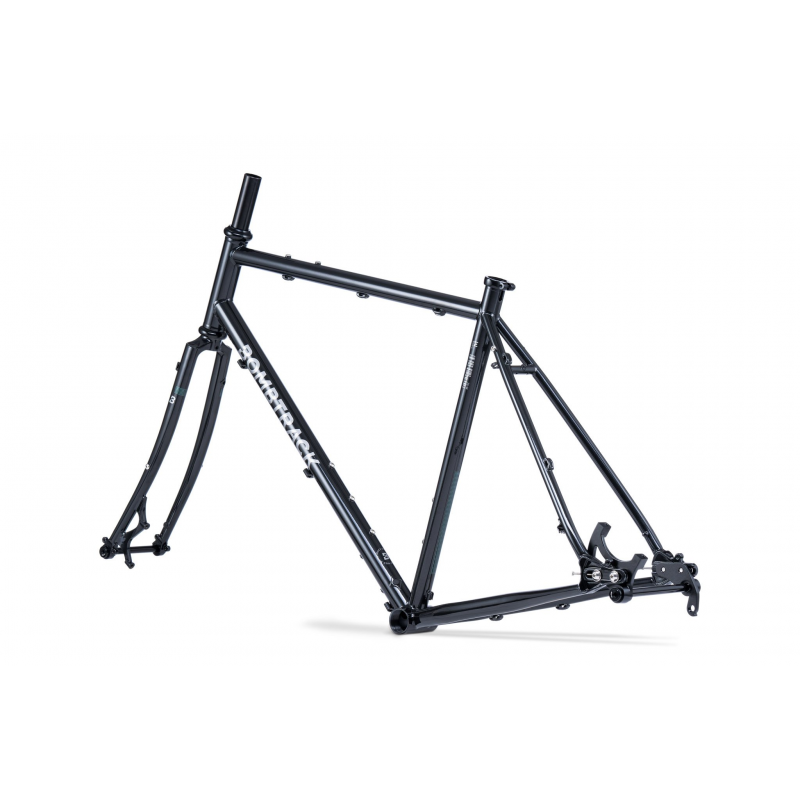

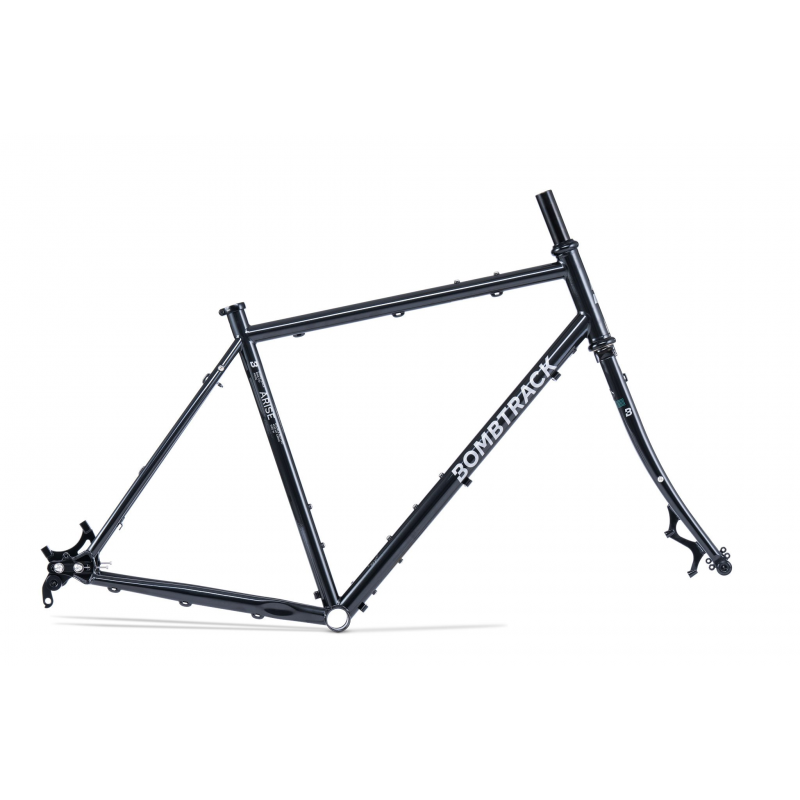

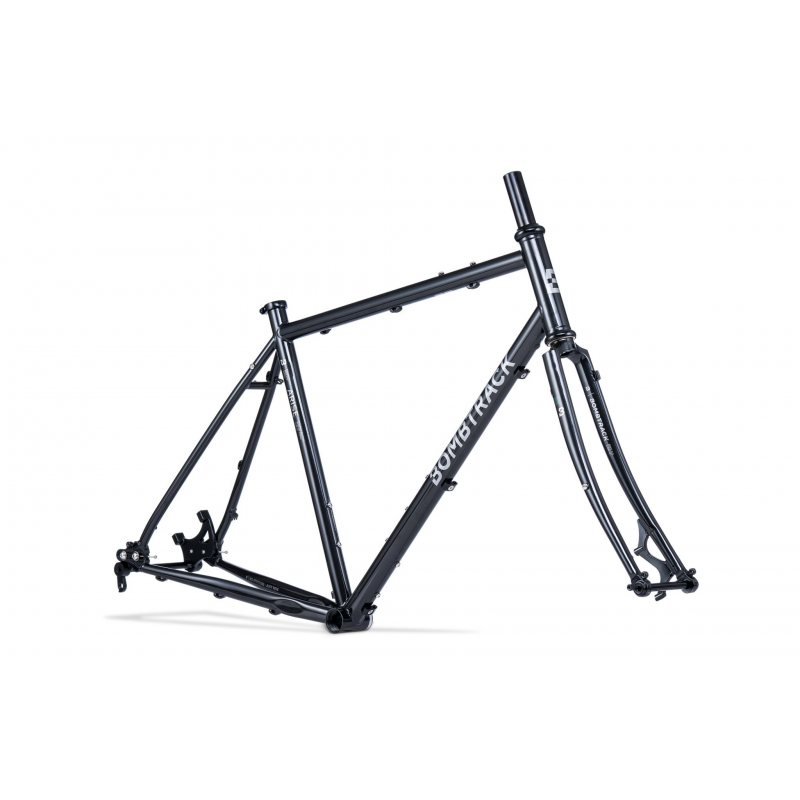

The Bombtrack Arise Frameset in Metallic Black is a highly versatile 4130 CrMo steel platform designed for multiple riding styles: gravel, all-road, commuting, light touring and cyclocross. With thru-axles, rack and fender mounts, and wide drivetrain compatibility, it offers a robust and adaptable foundation for building a bike tailored to your preferred terrain and riding habits.

What’s included in the frameset

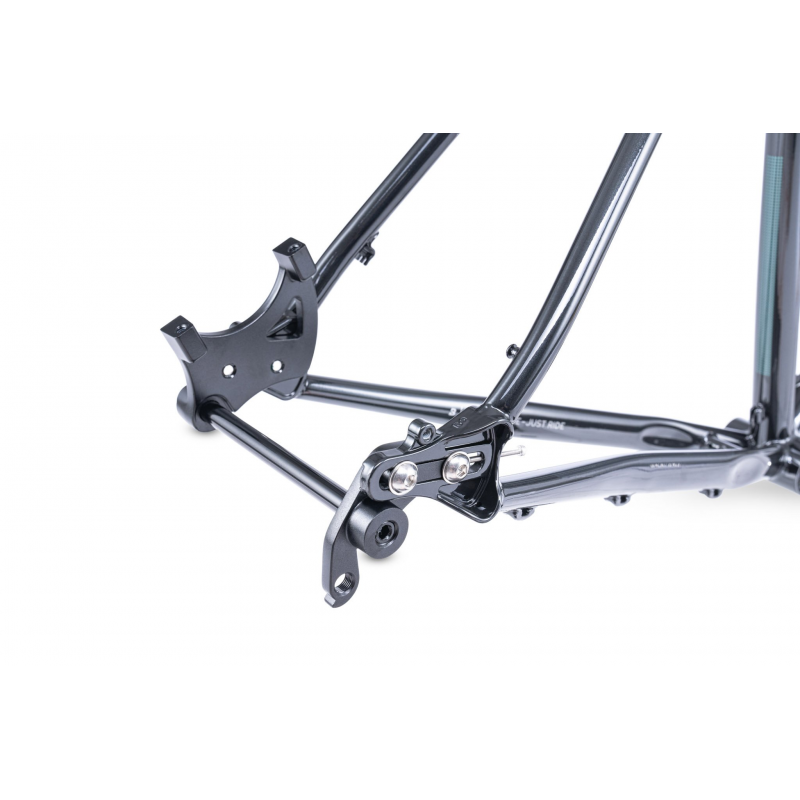

• Frame: 4130 double-butted CrMo steel with heat-treated front triangle, rack/fender mounts, TA sliding dropouts and 68 mm BSA bottom bracket shell.

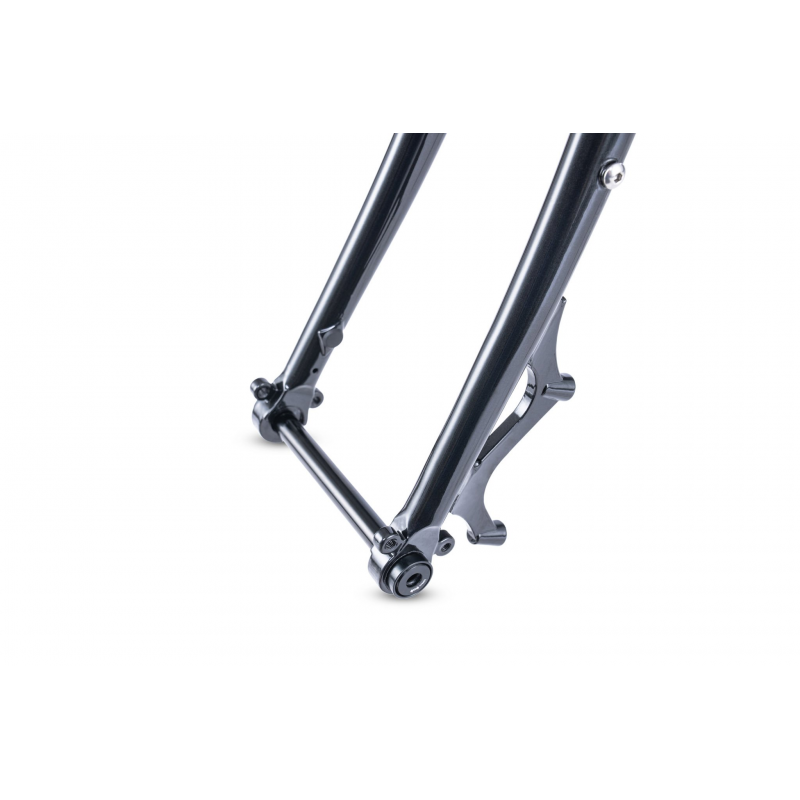

• Fork: 4130 CrMo fork with thru-axle dropouts, fender/rack eyelets and internal cable routing for hub dynamo lighting setups.

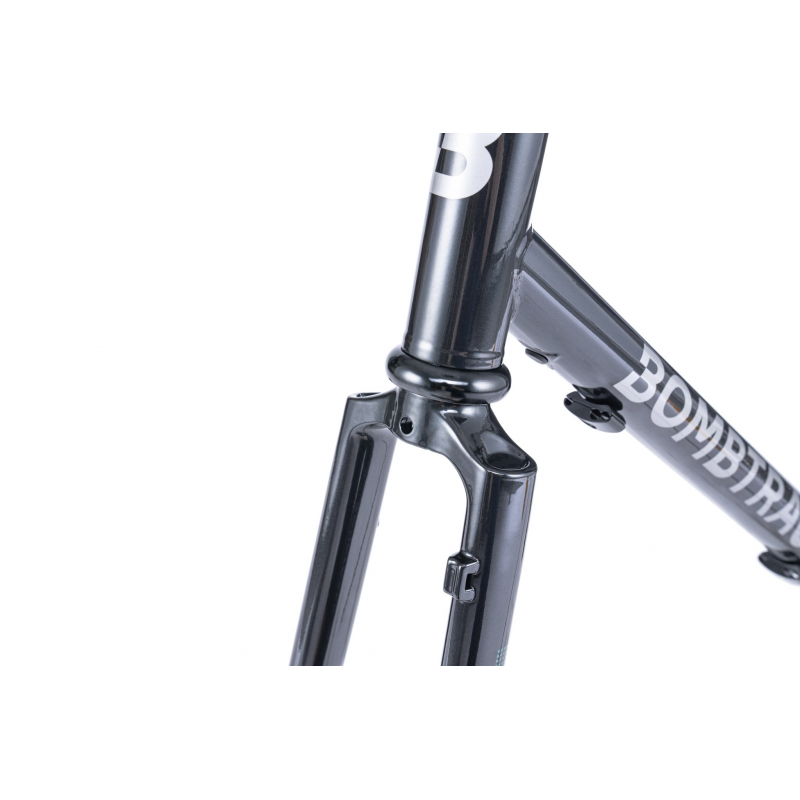

• Headset: Neco H282 sealed external headset, 1 1/8".
• Thru-axles: Front 12 × 100 mm, rear 12 × 142 mm (included).

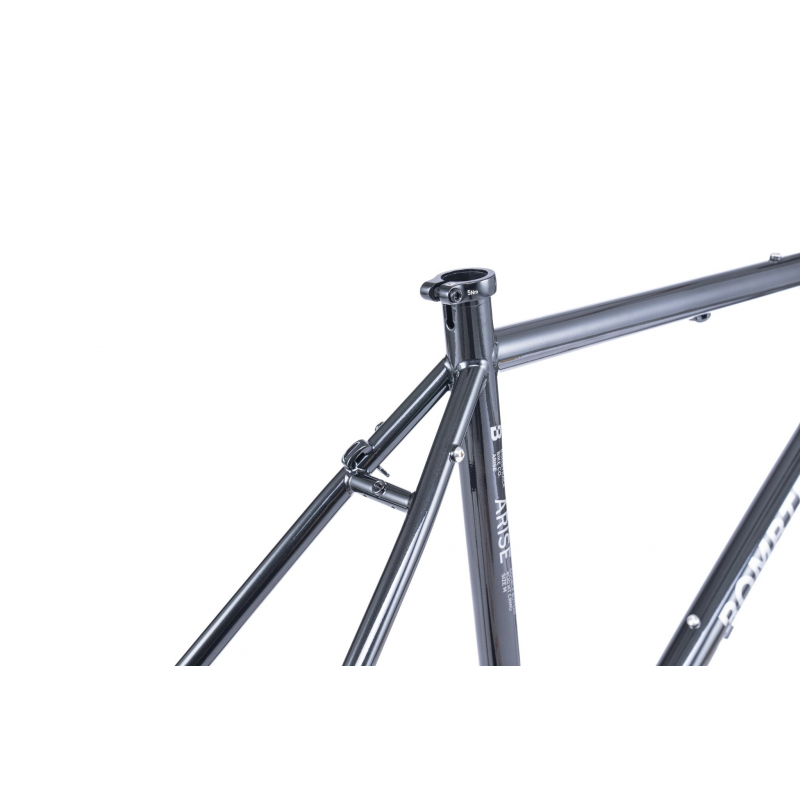

• Seatpost clamp: Bombtrack Prime 29.8 mm (included).

Use cases & configuration options

All-Road / Gravel

The Arise frameset is suitable for gravel and all-road builds, supporting tyres up to 42 mm (700C on M–XL, 650B on XS–S). It balances comfort, stability and responsiveness, making it ideal for mixed-surface riding and weekend exploration.

Touring & Commuting

With multiple rack and fender eyelets, the frameset adapts easily to commuting or light touring setups. It supports a wide range of drivetrain formats—1x or 2x, derailleur or internal gear hub— allowing you to tailor the build to durability, practicality and load needs.

Cyclocross & Urban

The geometry and steel construction offer predictable handling on technical courses or demanding city routes. Configurations with robust wheels and disc brakes make it suitable for year-round, all-conditions riding.

Compatibility & build infos

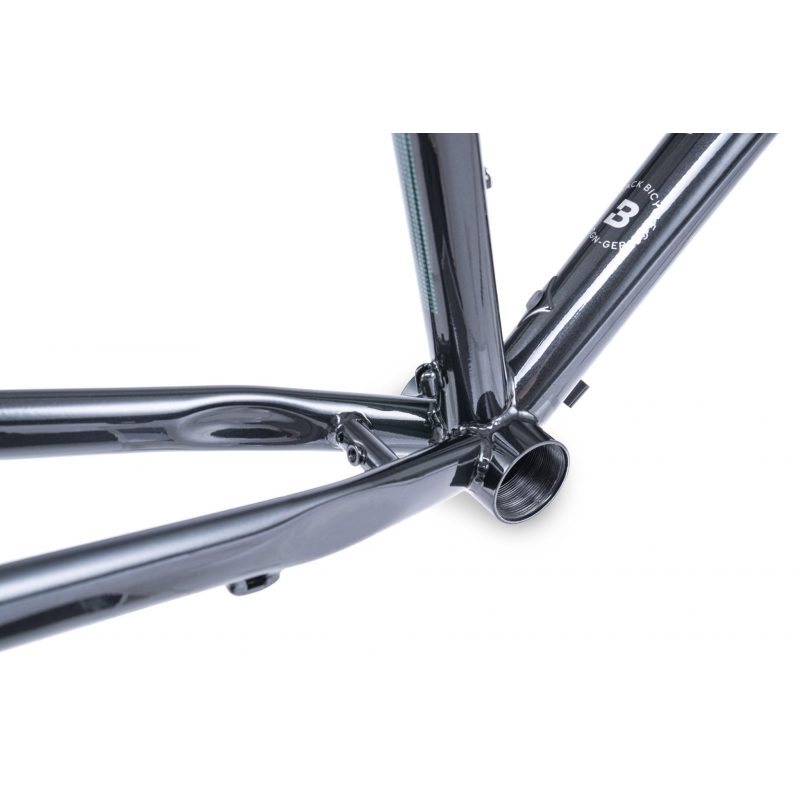

• Bottom bracket: BSA – 68 mm shell width.
• Headset standard (S.H.I.S.): EC34 / 28.6 (upper) | EC34 / 30 (lower).
• Fork steerer I.D.: 25.4 mm.
• Tyre clearance (without fenders): XS–S: 650B × 42C M–XL: 700C × 42C
• Drivetrain compatibility: 1x chainrings up to 44 T (45 mm chainline) 2x 52 / 36 T (45 mm chainline) Front derailleur compatible, clamp 28.6 mm.
• Seatpost diameter: 27.2 mm.
• Seat clamp diameter: 29.8 mm.
• Brake mounts: Post Mount 6" (front and rear).
• Max rotor size: 180 mm front / 160 mm rear.
• Thru-axles: 12 mm front and rear, thread pitch 1.5.
• Testing standard: Road.
• Trailer approved: yes.
• Seat-tube mounted child seat: approved.

Technical specifications – frame & fork

• Model: Arise Frameset.
• Color: Metallic Black.
• Frame: 4130 double-butted CrMo steel, rack/fender mounts, TA sliding dropouts, 68 mm BSA bottom bracket shell.
• Fork: CrMo steel fork, thru-axle, fender/rack mounts, internal cable routing.
• Frameset weight: Frame: 2480 g (size M, incl. axles & hanger) Fork: 1370 g (400 mm steerer)
• Max rider + cargo weight: 120 kg.
• ASTM riding condition: 2.
• Final product appearance and details may vary slightly.

Geometry & size guide

Size recommendations are indicative and based solely on rider height. If you are defining a bike project around this frameset, we can help you evaluate compatibility, drivetrain options and technical tolerances to ensure a safe and well-planned build.

We can help you identify the compatible components and define the most suitable configuration for your build project with the Arise frameset.
