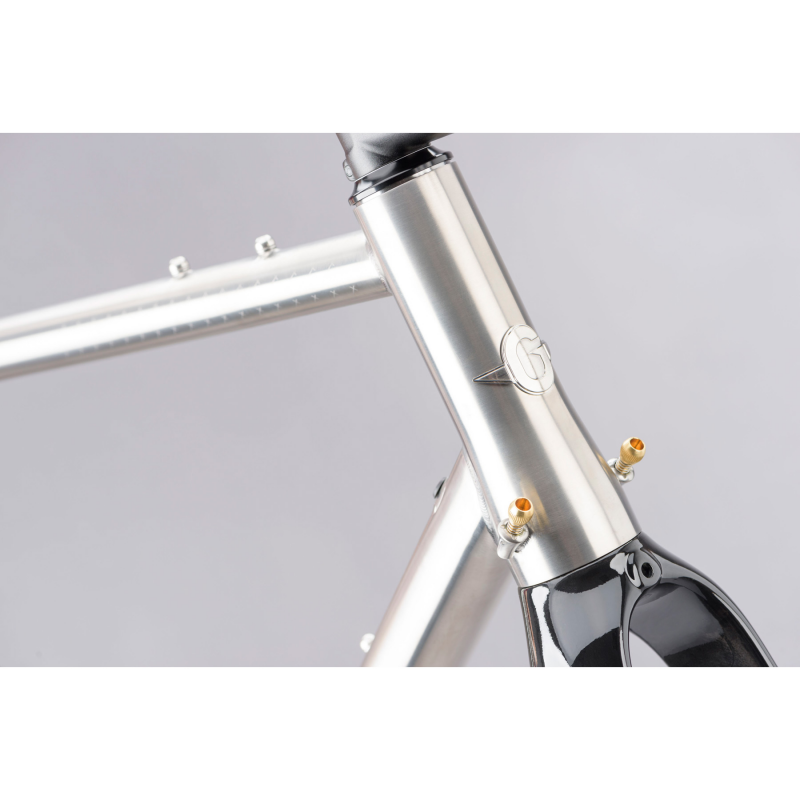

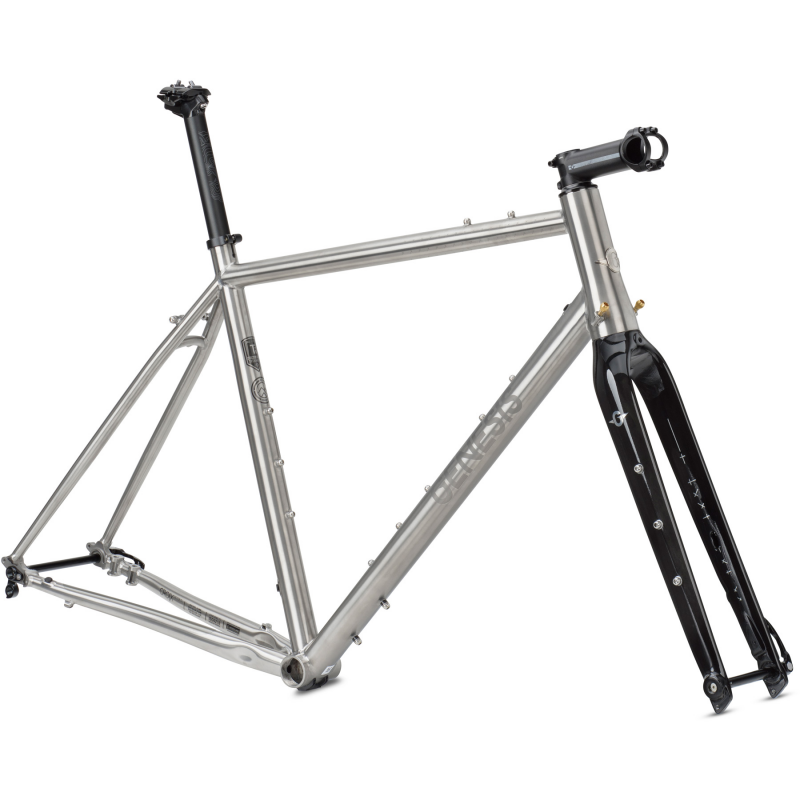

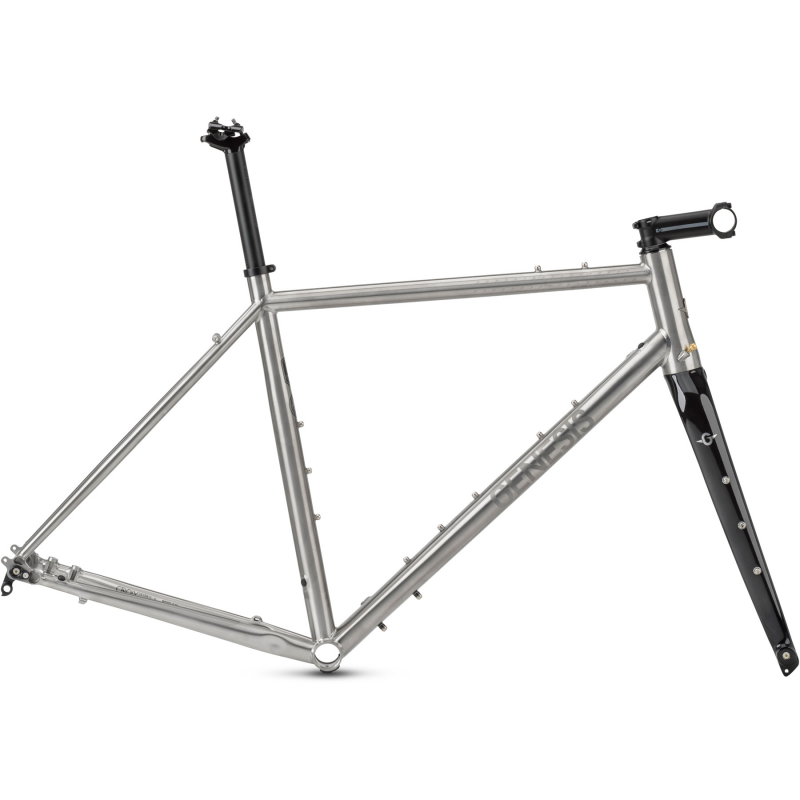

GENESIS 2022 Croix de Fer Ti Frameset

FEATURES

-3AL-2.5V butted titanium frame.

- Multiple luggage mounting points.

- 12mm thru axle frame and new full carbon fork.

- Headset, seat collar and axles included.

SPECS

Frame 3AL-2.5v Butted Titainium

Fork Genesis Full Carbon Gravel Disc Fork With Anything Cage Mounts

Headset PT-1860BC IS42 Upper / IS52 Lower

Hanger GNSPR40002

ADDITONAL INFO

Warranty Lifetime for Frame and Fork

Weight 2.71kg

Frame Weight Limit 130Kg

Fork Steerer Size 1 1/8” - 1 1/5”

Fork Spec

XS A-C = 401 Offset = 50 Rake/ Trail = 69

SM A-C = 401 Offset = 50 Rake/ Trail = 69

MD A-C = 401 Offset = 50 Rake/ Trail = 66

LG A-C = 401 Offset = 50 Rake/ Trail = 66

XL A-C = 401 Offset = 50 Rake/ Trail = 63

Wheel Size Options 700c, 650b

Max Tyre Clearance 650B rear 45c/ front 54c 700c rear 45c/ front 50c

Hub Size/ Spacing Front 100mm, Rear 142mm

Brake Mount Type Flat Mount 140

Front Mech Size/ Compatibility Band On 31.8mm

Max Chainring Size 50/34, 42t

Seat Tube/Clamp Size 27.2mm/31.8mm

Mech Hanger Type & Part Code Replaceable - GNSPR40002

Colour Alice Clear

Colour Code Raw Polished Titanim

MOUNTS

Mudguard Mounts Yes

Rack Mounts Yes

Bottle Cage Mounts Yes

Additonal Mounts Anything Cage Mounts

GEOMETRY XS S M L XL

Seat Tube 470 500 530 550 580

Top Tube 524 544 561 582 605

Frame Reach 365 375 385 395 405

Frame Stack 553 572 593 612 633

Head Tube 115 135 155 175 195

Head Angle 71 71 71.5 71.5 72

Seat Angle 74 73.5 73.5 73 72.5

Chainstay 430 430 430 430 430

BB Drop 73 73 73 73 73

Wheelbase 1007 1023 1035 1052 1063

Fork Offset 50 50 50 50 50

Standover 761 784 808 826 850
