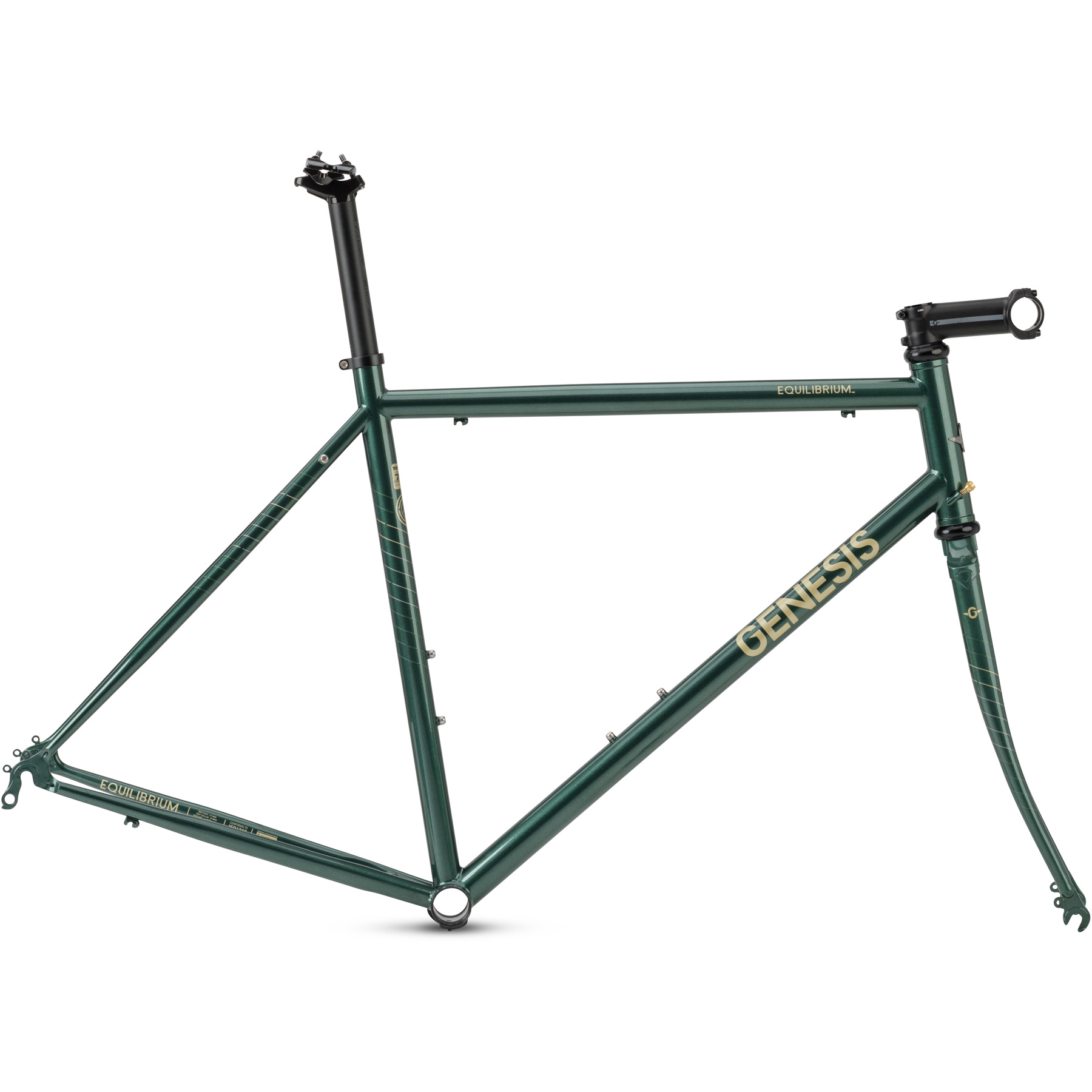

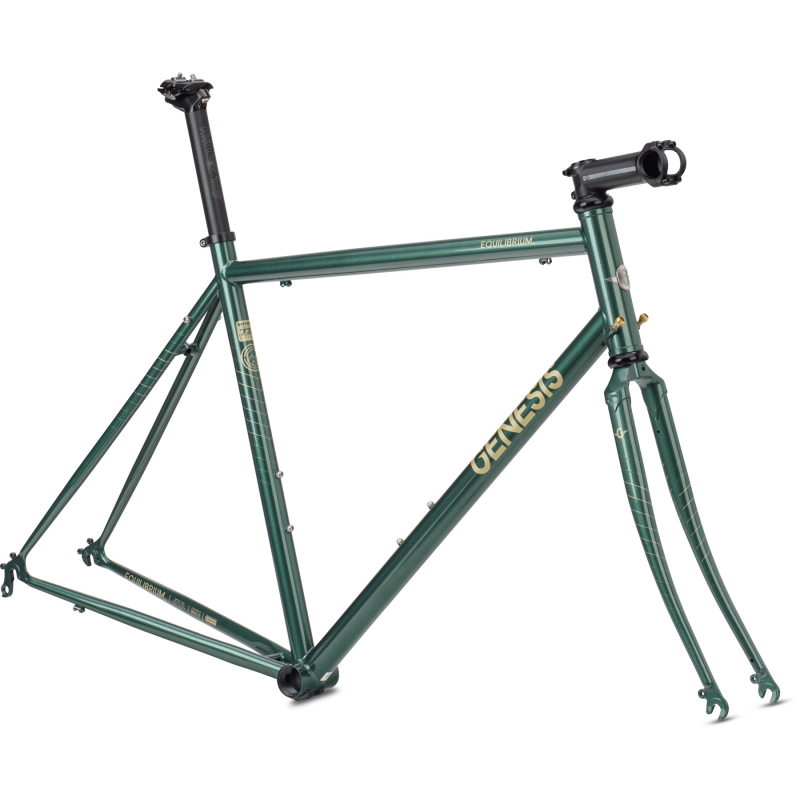

GENESIS 2021 Equilibrium 725 Telaio +Forcella

FEATURES

- Reynolds 725 CrMo tubeset.

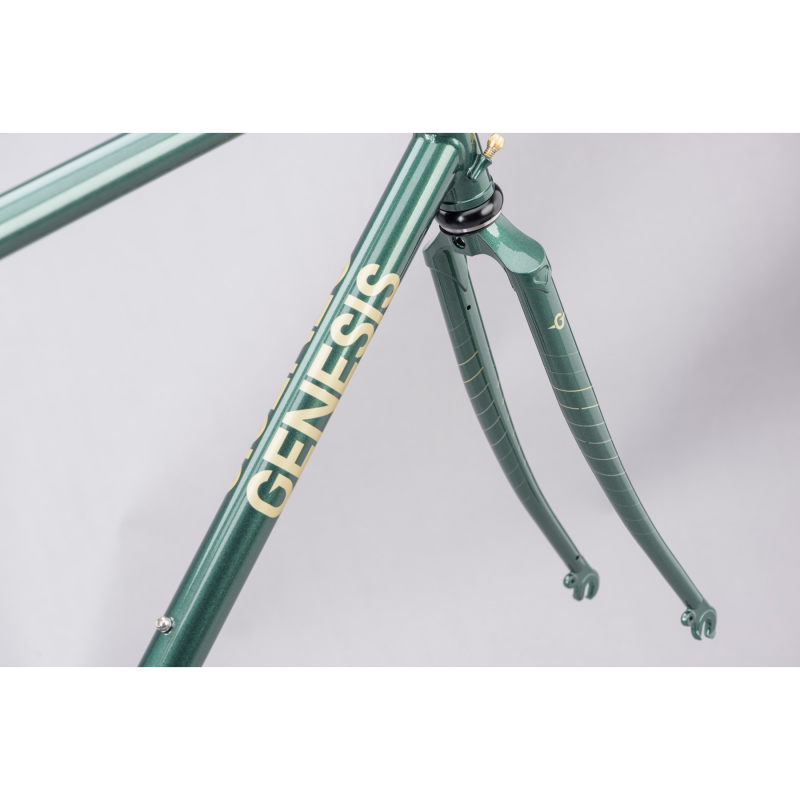

- CrMo classic fork.

- Mudgurd compatible.

- Pannier rack compatible.

- Headset and seat collar included.

SPECS

Frame Reynolds 725 Heat-Treated Chromoly

Fork Genesis Steel

Headset PT-1767D EC34 Upper / EC34 Lower

Hanger N/A

ADDITONAL INFO

Product Code GN21810

Warranty Lifetime for Frame and Fork

Weight 3.92kg

Frame Weight Limit No Weight Limit

Fork Steerer Size 1 1/8”

Fork Spec

XS A-C = 377 Offset = 50 Rake/ Trail = 72

SM A-C = 377 Offset = 50 Rake/ Trail = 70

MD A-C = 377 Offset = 50 Rake/ Trail = 60

LG A-C = 377 Offset = 50 Rake/ Trail = 60

XL A-C = 377 Offset = 50 Rake/ Trail = 60

Wheel Size Options n/a

Max Tyre Clearance 700 x 30

Hub Size/ Spacing Front 100mm, Rear 142mm

Brake Mount Type Long Arm Caliper

Front Mech Size/ Compatibility Band On 28.6mm

Max Chainring Size 52/39

Seat Tube/Clamp Size 27.2mm/29.8mm

Mech Hanger Type & Part Code Intergrated

Colour Don McGreen

Colour Code RAL-750-M

MOUNTS

Mudguard Mounts Yes

Rack Mounts Yes

Bottle Cage Mounts Yes

Additonal Mounts n/a

GEOMETRY XS S M L XL

Seat Tube 460 490 520 540 570

Top Tube 526 542 561 579 595

Frame Reach 374 375 385 395 405

Frame Stack 533 556 579 598 618

Head Tube 120 140 160 180 200

Head Angle 72 72 72 72 72

Seat Angle 73.5 73.5 73.5 73 73

Chainstay 420 420 420 420 420

BB Drop 72 72 72 72 72

Wheelbase 1009 1009 1016 1032 1048

Fork Offset 50 50 50 50 50

Standover 759 780 797 823 846
