Data sheet
| Frame | Adventure MTB |
| Wheel Size | 29" |
More info

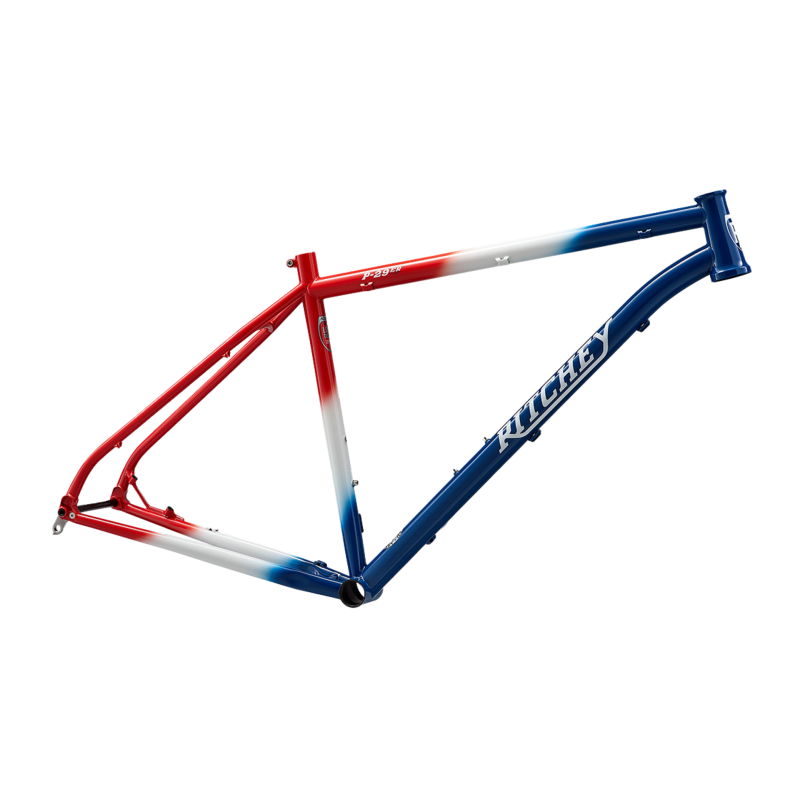

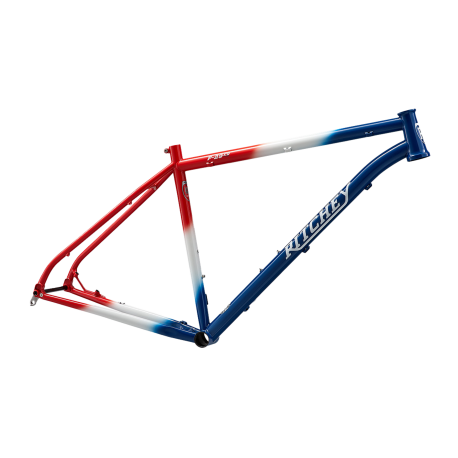

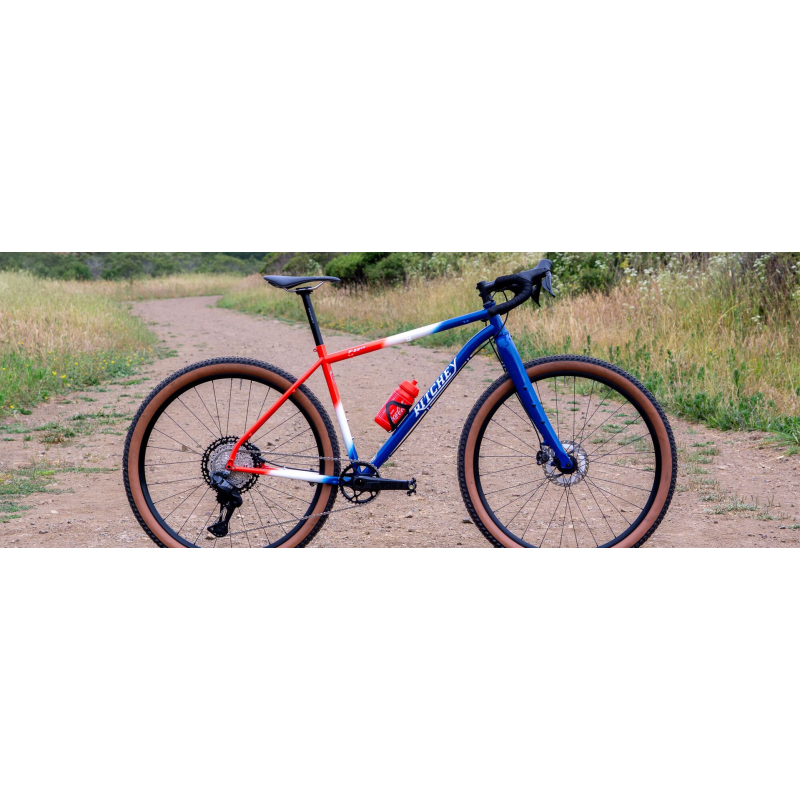

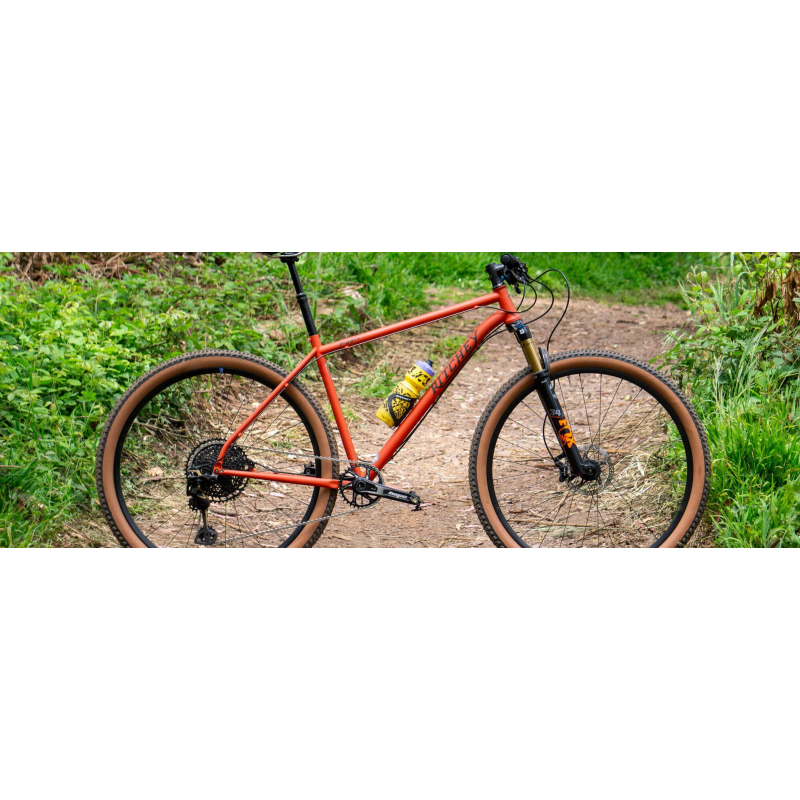

Ritchey P-29er Frame – Team Edition
The Ritchey P-29er – Team Edition is a steel hardtail frame developed for modern XC and real-world endurance riding, where efficiency, reliability and technical coherence matter more than trends. It is a 29er platform designed around a 100 mm fork, 1x drivetrains and current standards, with no unnecessary compromises.
The construction philosophy is purely Ritchey: proprietary steel tubing, balanced geometry and functional choices aimed at long-term durability and predictable ride behaviour, even over long distances and varying terrain.
Construction highlights
WCS Logic Tubing
The frame is built using Ritchey Logic steel tubing that is triple-butted and heat-treated, developed in-house and optimised specifically for the TIG welding process to Tom Ritchey’s specifications. This results in a frame that prioritises structural strength, longevity and consistent ride quality, while remaining appropriate for XC use.

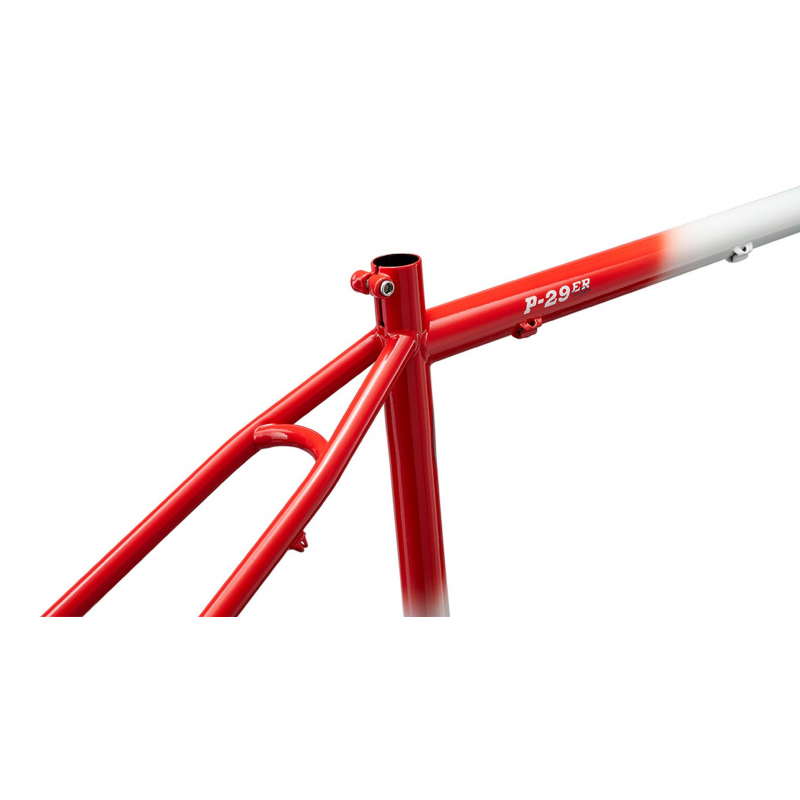

Integrated Seat Collar
The distinctive fastback seat stay / seat tube junction integrates the seat collar. This solution is both recognisable and functional, securely clamping the seatpost while reducing external parts and potential failure points.
Technical specifications
FRAME
| Item | Specification |
|---|---|
| Material | Heat-treated, triple-butted Ritchey Logic steel |
| Construction | TIG welded |

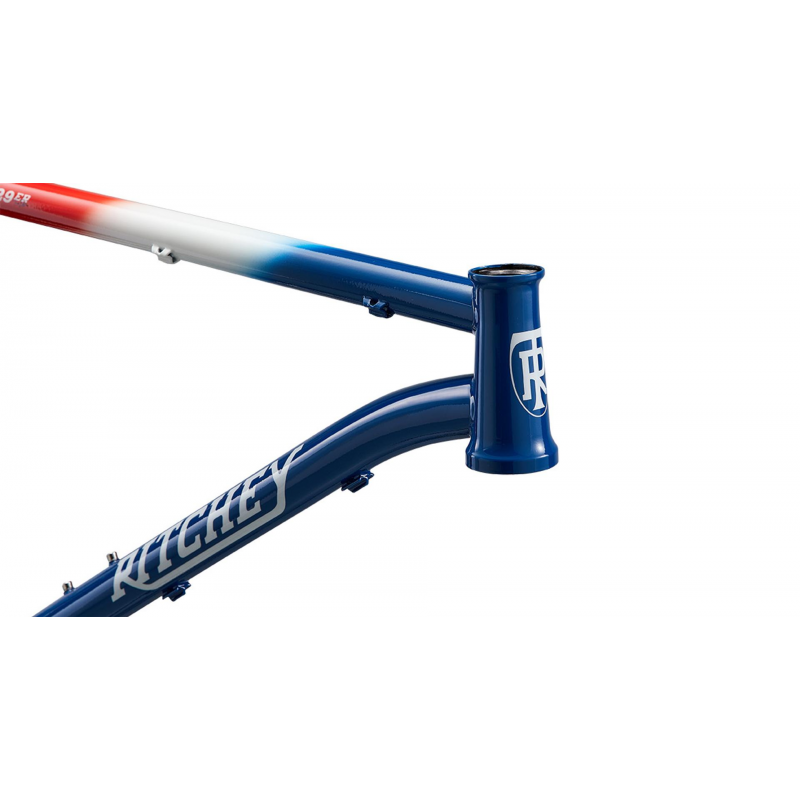

| Head tube | Ultra-light forged and machined tapered head tube |
| Treatment | ED Coat (Electrophoretic Deposition) for corrosion resistance |
| Headset | Ritchey WCS included (upper IS42/28.6 – lower IS52/40) |
| Upper bearing | 41.8 mm OD / IS42/28.6 (S.H.I.S.) |
| Lower bearing | 51.9 mm OD / IS52/40 (S.H.I.S.) |
| Seat tube clamp | Integrated (2.5 Nm max for chain guides – 28.6 mm clamp) |
| Seatpost diameter | 27.2 mm with stealth dropper routing |

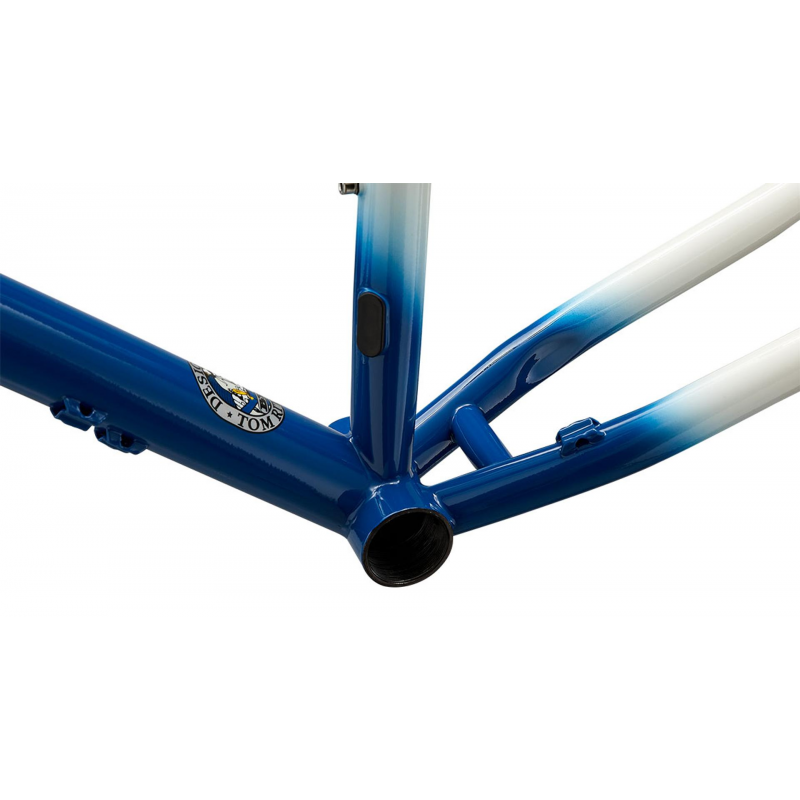

| Bottom bracket | BSA 73 mm – English threaded |
| Drivetrain | 1x only |
| Max chainring size | 38T |
| Chainline | 52 mm |
| Direct Mount compatibility | Not compatible (including T-Type derailleurs and cassettes) |
| Bottle cage mounts | Two (downtube + seat tube) *size S: downtube only |

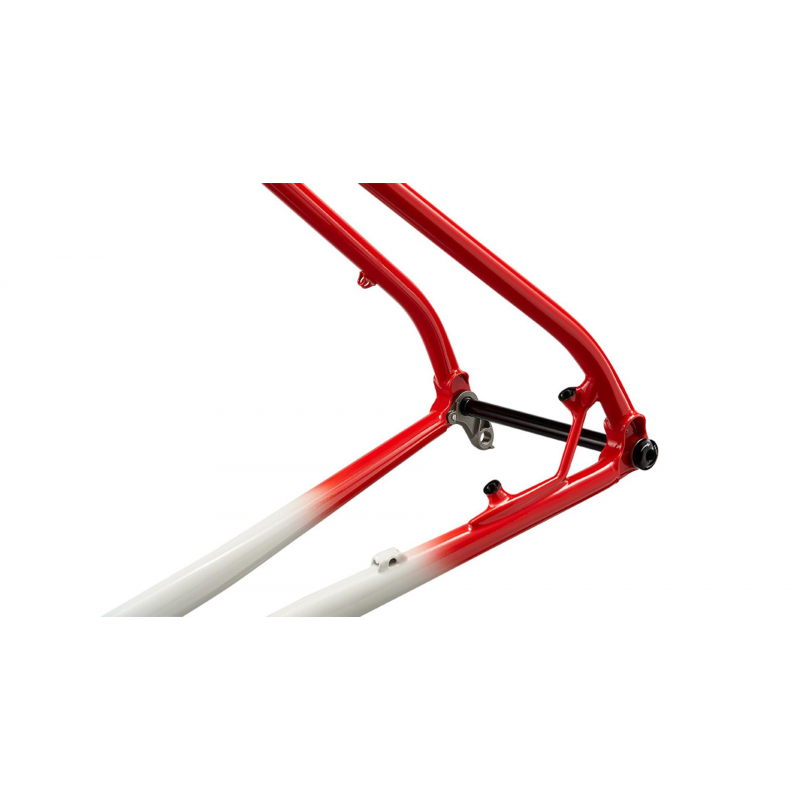

| Rear spacing | BOOST 148 mm |

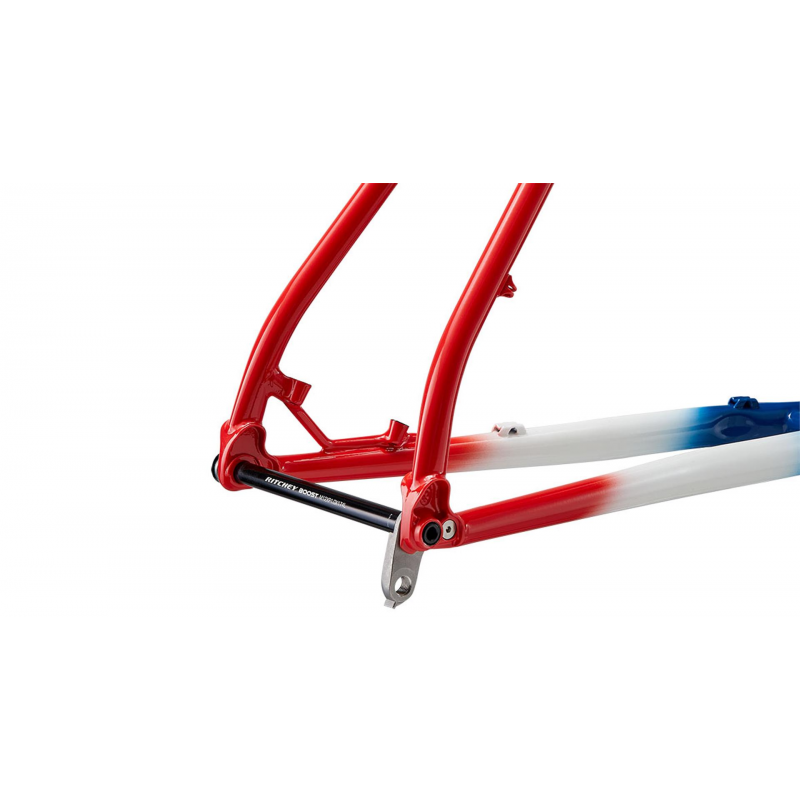

| Rear axle | 12 mm alloy thru-axle included |
| Cable routing | External |
| Derailleur hanger | Replaceable stainless steel |
FORK
| Item | Specification |
|---|---|
| Recommended fork | 100 mm BOOST suspension fork |
| Rigid alternative | 483 mm axle-to-crown rigid fork |
| Note | Fork not included |
TIRE COMPATIBILITY
| Item | Specification |
|---|---|
| Wheel size | 29" |
| Tyre size | 29x2.25 recommended (2.3 max) |
| 27.5" compatibility | Not compatible |
| Note | Actual tyre size varies by rim and tyre manufacturer |
BRAKE COMPATIBILITY
| Item | Specification |
|---|---|
| Standard | Rear post-mount |
| Rotor size | 160 mm |
| Max rotor | 180 mm with adaptor (sold separately) |
DETAILS
| Item | Specification |
|---|---|
| Sizes | S (15") / M (17") / L (19") / XL (20.5") |
| Weight | 2,315 g (size M / 17") |
| Colour | Team Edition Red, White and Blue Fade & Dirt in Blood |
Size guide (manufacturer reference)
The following sizing is provided by the manufacturer and should be considered a general reference. Final size choice depends on individual proportions and intended use.
S: 157–170 cm
M: 168–178 cm
L: 175–186 cm
XL: 183–191 cm
At Bikejamming we offer dedicated size consultation: send us your height and inseam and we will reply within 24 hours.
Spare parts and compatibility support
With frame purchase we provide access to:
original Ritchey spare parts
compatible Ritchey headsets
support for fork, drivetrain and wheel compatibility checks
Why buy from Bikejamming
Tracked shipping
Bilingual support (Italian / English)
Fast, clear responses
Real pre-purchase consultation on sizing, setup and compatibility
If you have any technical questions about the Ritchey P-29er Team Edition, we are available to help you build a bike that truly fits your riding style and intended use.
