Data sheet
| Frame | Urban / Commuter |
| Wheel Size | 29" |
More info

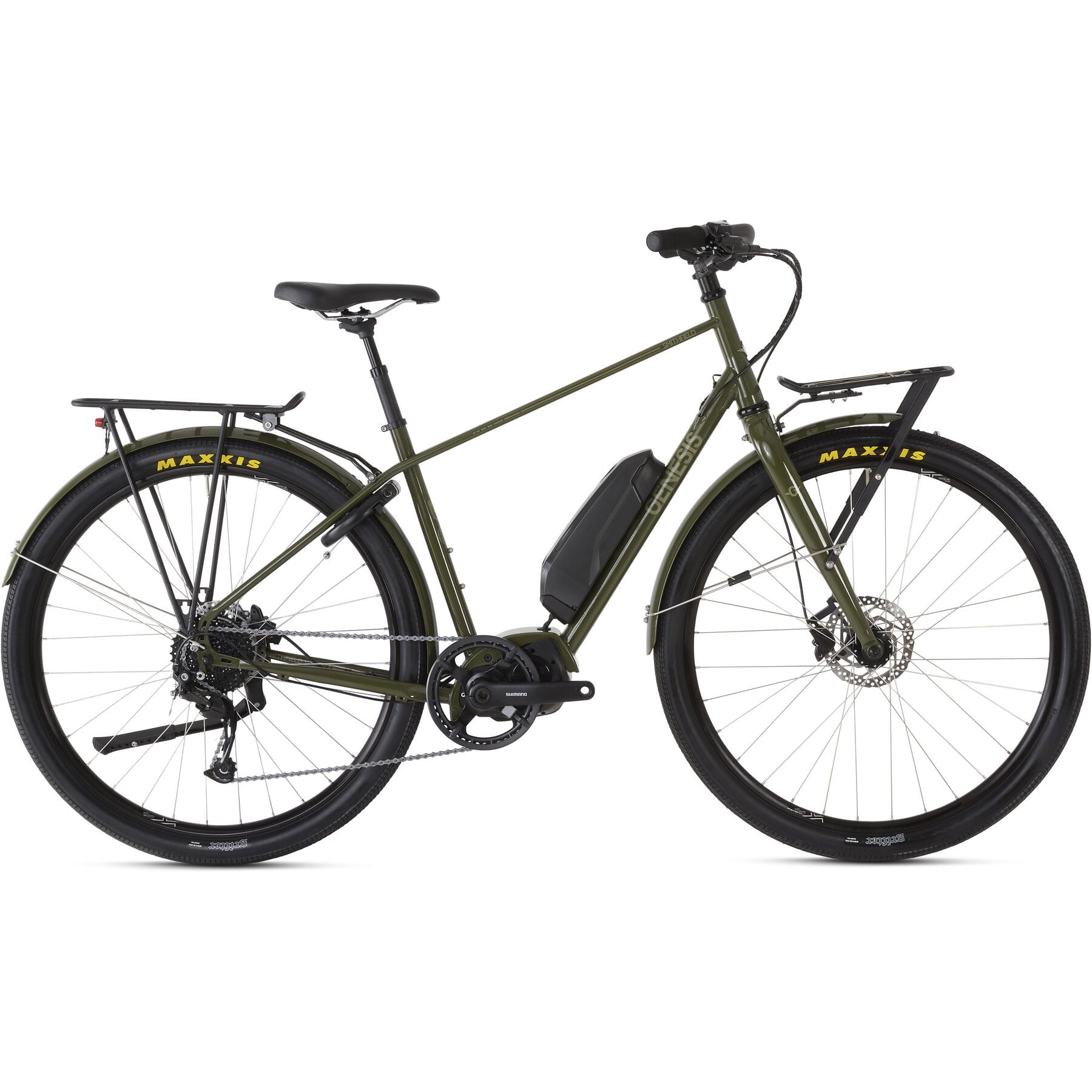

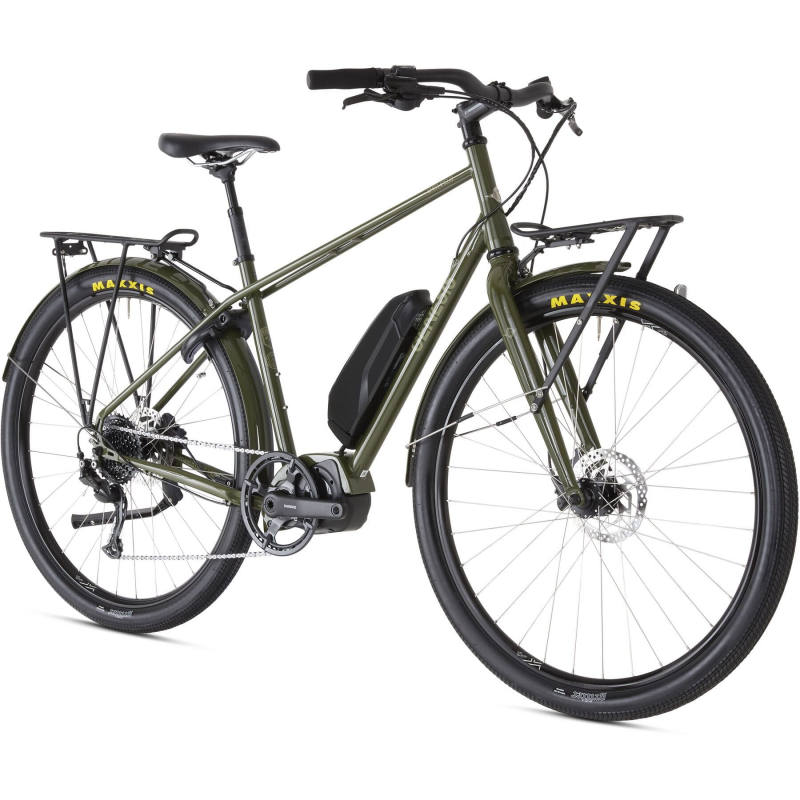

Genesis Smithfield – steel urban & leisure e-bike
The Smithfield is an urban and leisure e-bike designed in the UK by Genesis Bikes, intended for everyday city riding as well as relaxed journeys on cycle paths, towpaths and light gravel tracks.
Built from Genesis Mjolnir seamless double-butted chromoly steel, the frame is instantly recognisable thanks to its twin top tube and classic proportions. The use of 29” wheels with higher-volume tyres contributes to stability and comfort across mixed surfaces.
Electric assist system
The Smithfield is equipped with the Shimano STEPS E6100 system, featuring:
250W drive unit with 60 Nm torque

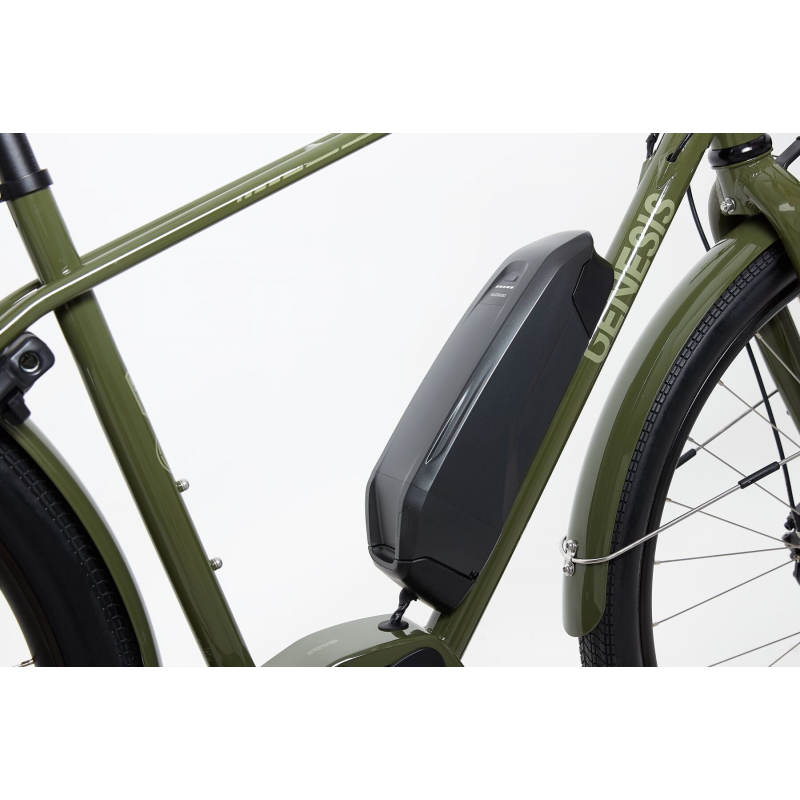

418 Wh external battery mounted on the down tube
claimed range up to 150 km in Eco mode
The external battery can be removed easily for charging when a power outlet is not available near the bike. Claimed charging times are around 2 hours to 80% and around 4 hours to 100%.

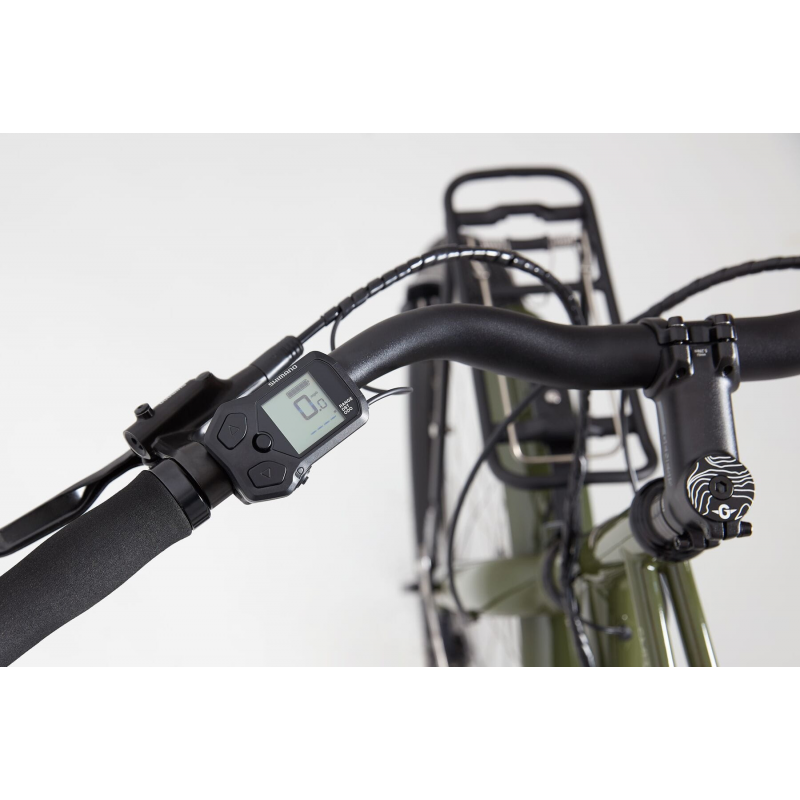

A clear, easy-to-read handlebar display integrates controls for assistance modes and lighting.
Equipment and everyday use
The Smithfield combines a single-chainring, 9-speed drivetrain, hydraulic disc brakes and a practical equipment package aimed at daily usability:
AtranVelo AVS front and rear racks
integrated front and rear lights
kickstand
frame-mounted Trelock ring lock
The AtranVelo rack system allows compatible baskets, bags and crates to be fitted or removed quickly, making the bike suitable for commuting, shopping and light carrying duties.
Independent user feedback (summary)
Independent reviews and user reports commonly highlight:
smooth and progressive pedal assistance
quiet operation of the drive system
a comfortable riding position
a practical, well-equipped setup for urban use
Technical specifications
Frame & fork
Frame: Genesis Mjolnir Seamless Double-Butted Chromoly
Fork: Aluminium
Frame warranty: Lifetime
Drivetrain
Groupset: Shimano Acera M3100
Speeds: 1×9
Chainring: 38T
Cassette: 11–36T
Electric system

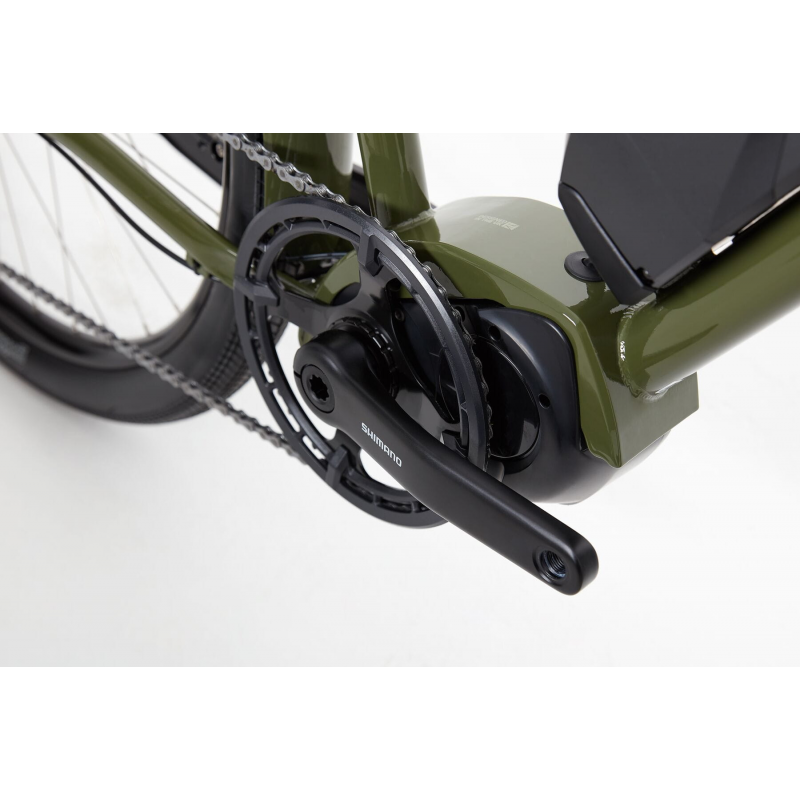

Drive unit: Shimano STEPS E6100, 250W, 60 Nm
Battery: Shimano 418 Wh, external
Claimed range: up to 150 km
Brakes
Brakes: Shimano MT-200 hydraulic disc
Rotors: 160 mm front / rear
Wheels & tyres
Wheel size: 29”
Tyres: Maxxis Grifter 29×2.0”
Equipment

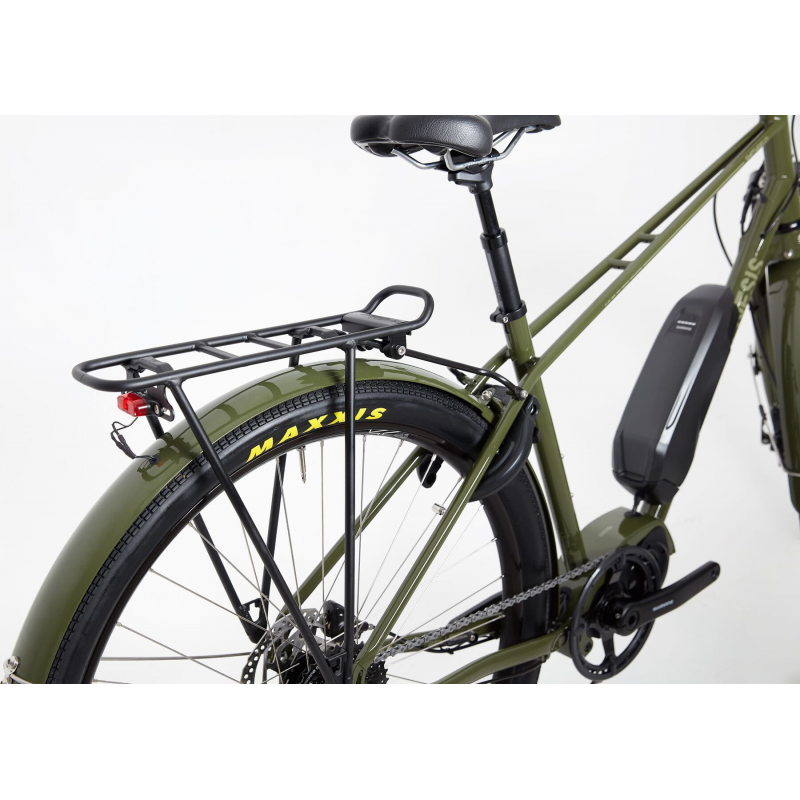

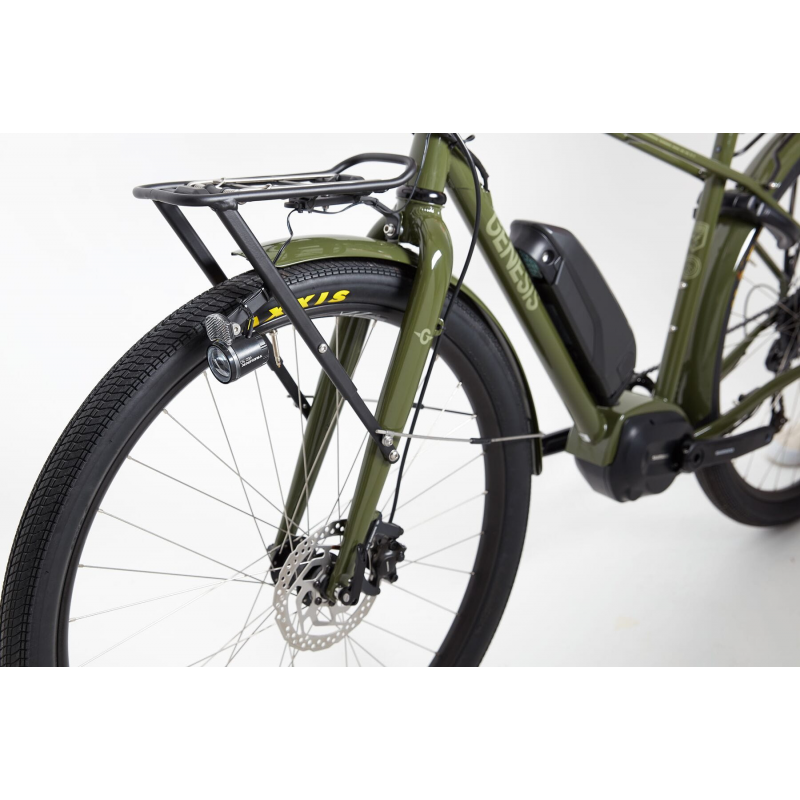

Racks: AtranVelo AVS front & rear
Lights: Trelock I-Vio 50 (front) / Busch & Müller Toplight (rear)

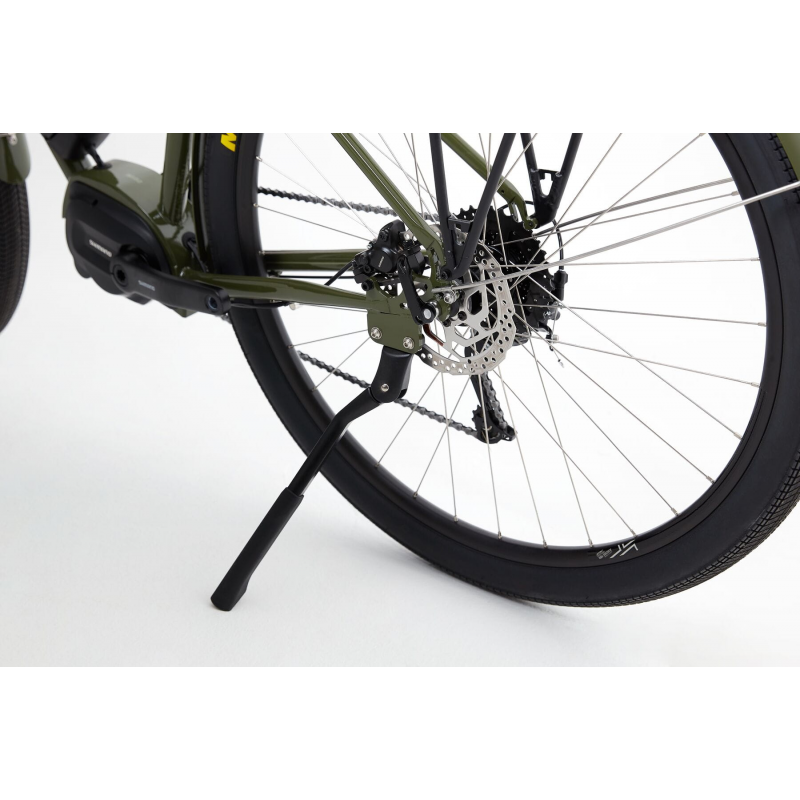

Kickstand: chainstay-mounted
General
Category: Electric Leisure & Commute
Intended use: Urban & Commute
Drivetrain: single chainring
Cable routing: external
Sizing guide (indicative)
S: 164–172 cm
M: 172–180 cm
L: 178–186 cm
Sizing indications are general and should be considered alongside riding style and intended use. Personal size consultation is available.
Frame geometry (mm)
| Size | S | M | L |
|---|---|---|---|
| Effective Reach | 445 | 465 | 485 |
| Seat Tube | 430 | 470 | 510 |
| Top Tube | 579 | 590 | 633 |
| Reach | 375 | 395 | 415 |
| Stack | 627 | 646 | 669 |
| Head Tube | 165 | 185 | 210 |
| Head Angle | 71 | 71 | 71 |
| Seat Angle | 72 | 72 | 72 |
| Chainstay | 465 | 465 | 465 |
| BB Drop | 65 | 65 | 65 |
| Wheelbase | 1082 | 1108 | 1136 |
| Fork Offset | 55 | 55 | 55 |
| Standover | 764 | 790 | 815 |
| Stem Length | 70 | 70 | 70 |
| Handlebar Width | 680 | 680 | 680 |
