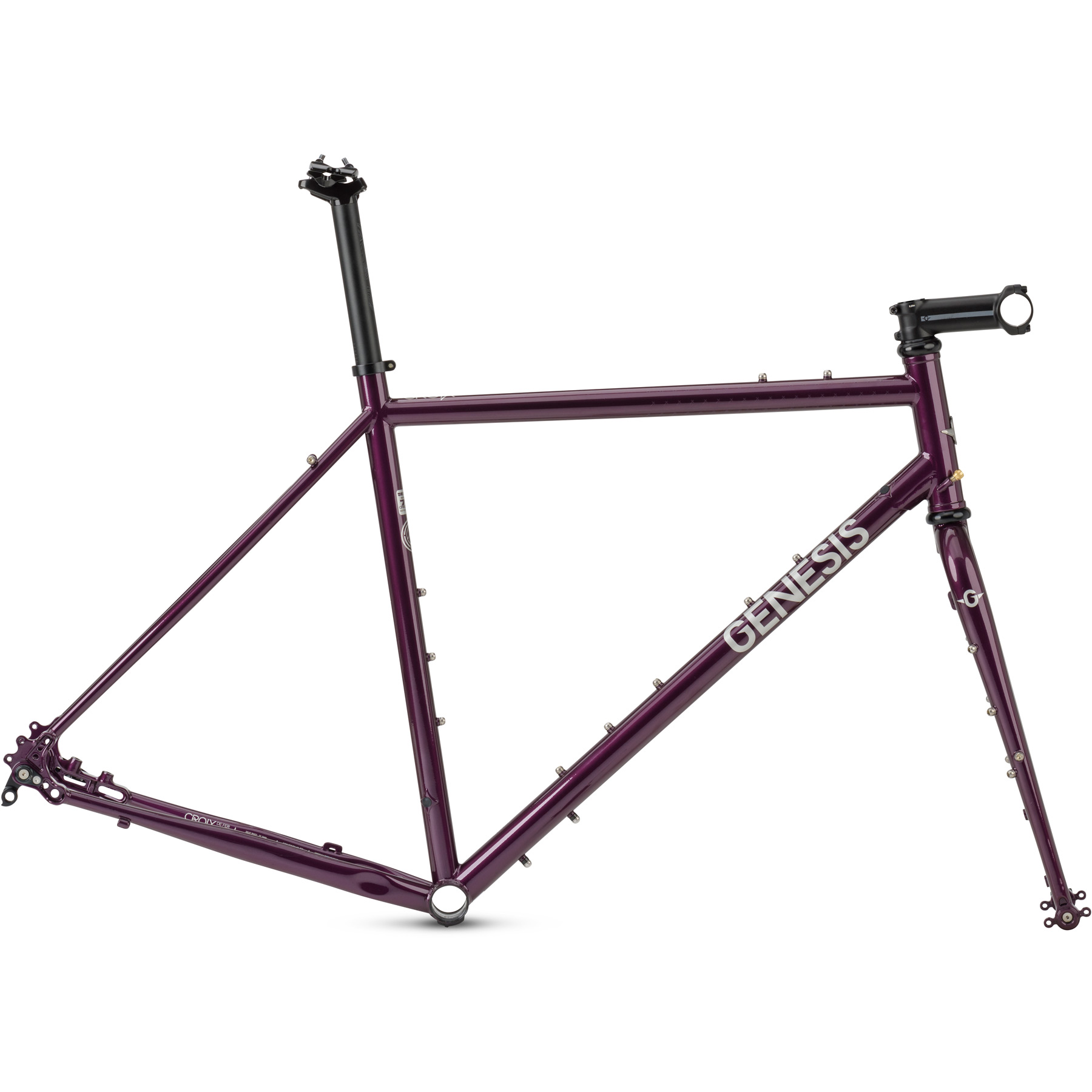

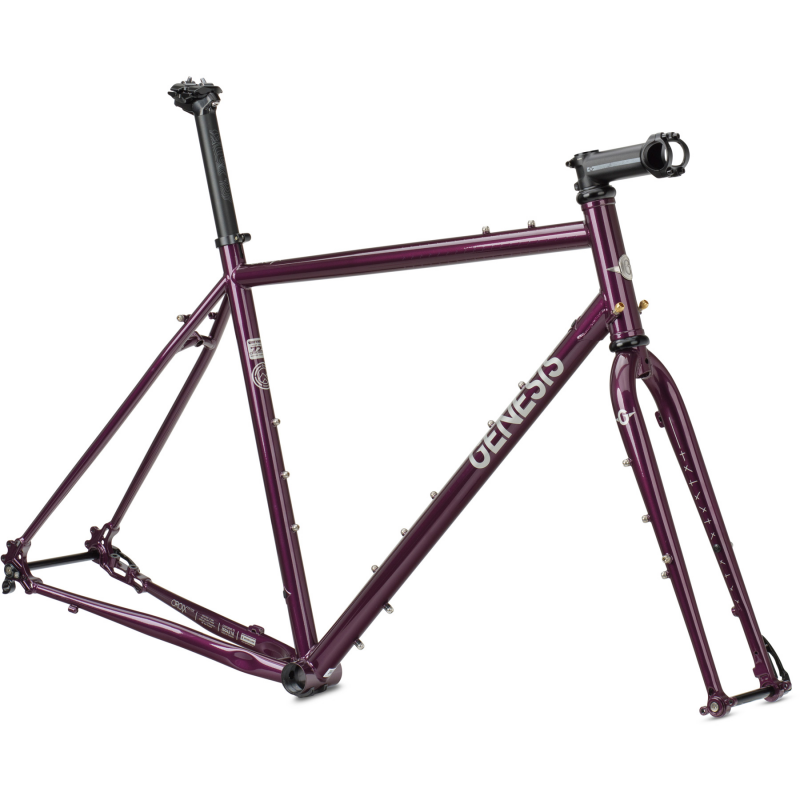

GENESIS 2022 Croix de Fer 725 12/12 Frameset - LAST L AVAILABLE

FEATURES

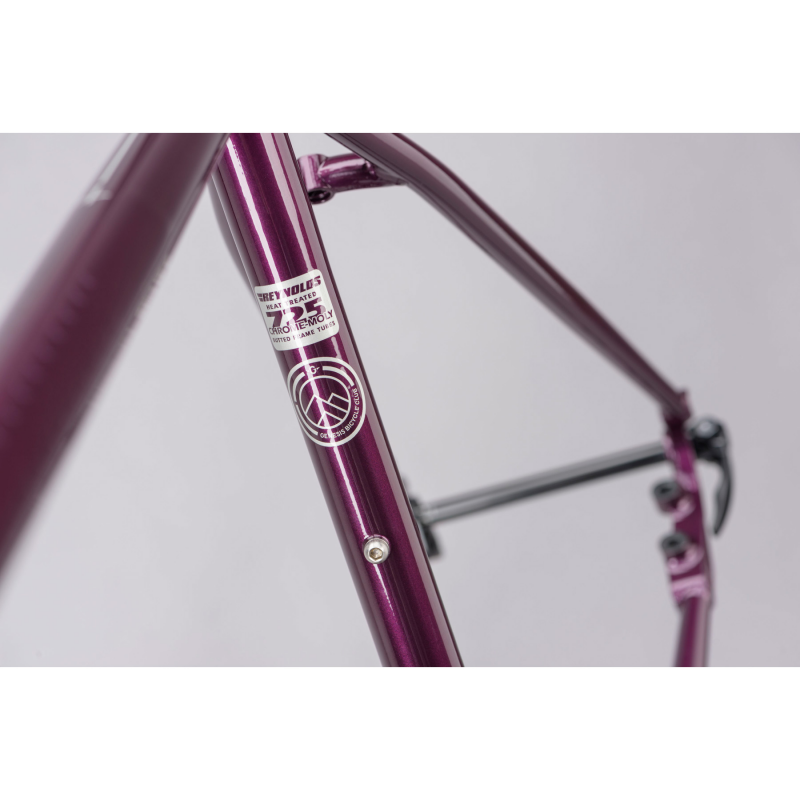

- Reynolds 725 CrMo tubeset.

- Multiple luggage mounting points.

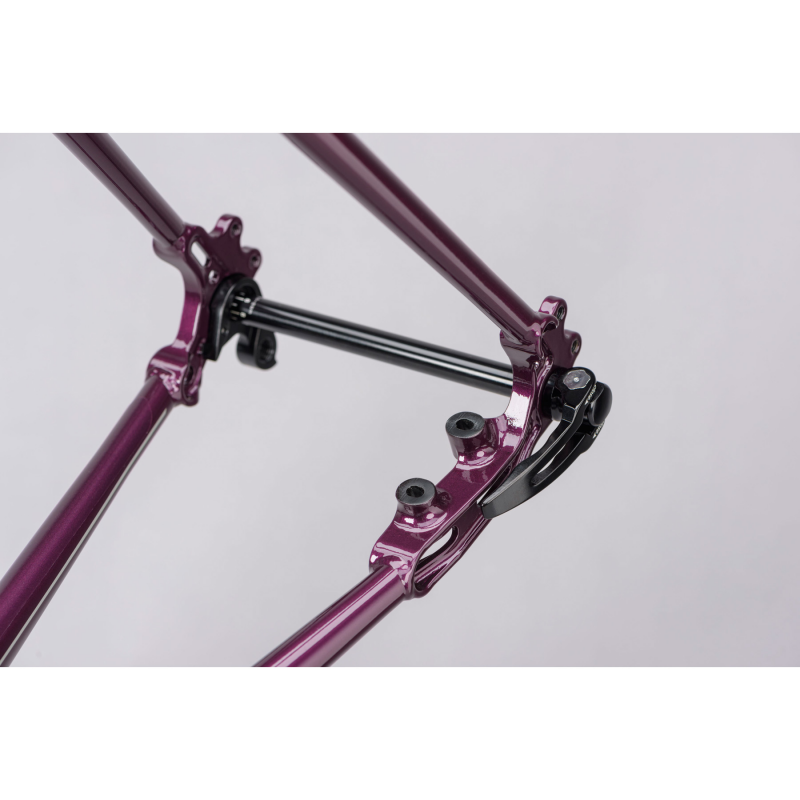

- 12mm thru axle frame and fork.

- Headset, seat collar and axles included.

SPECS

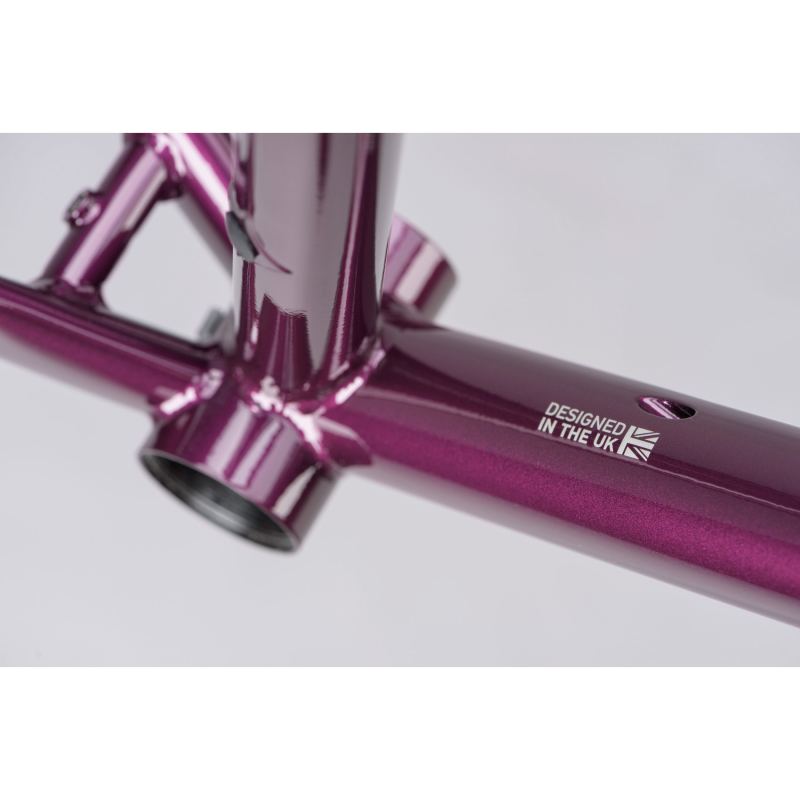

Frame Reynolds 725 Heat-Treated Chromoly 12mm Thru Rear Axle

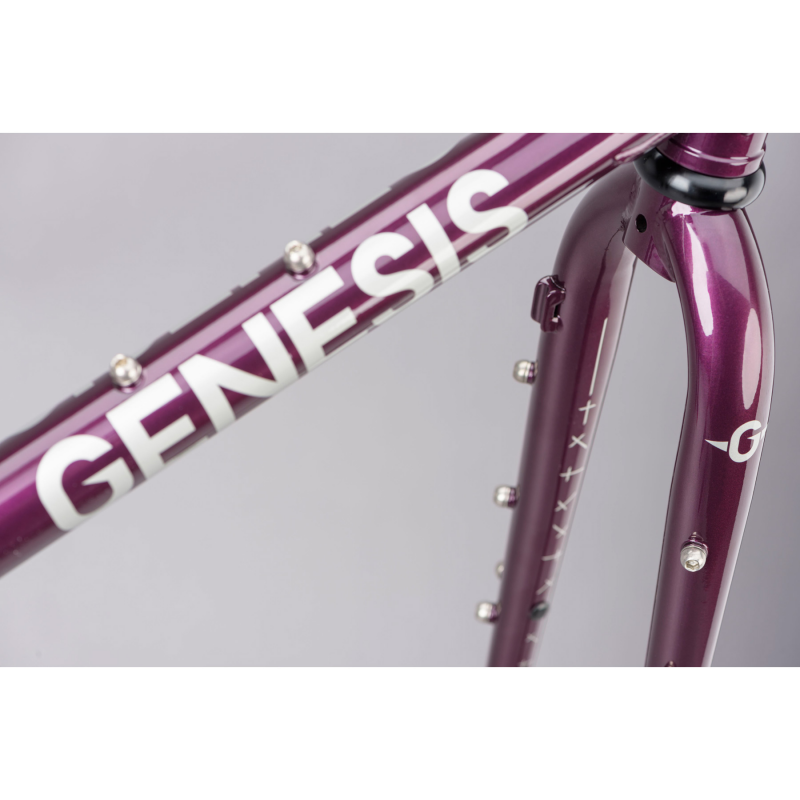

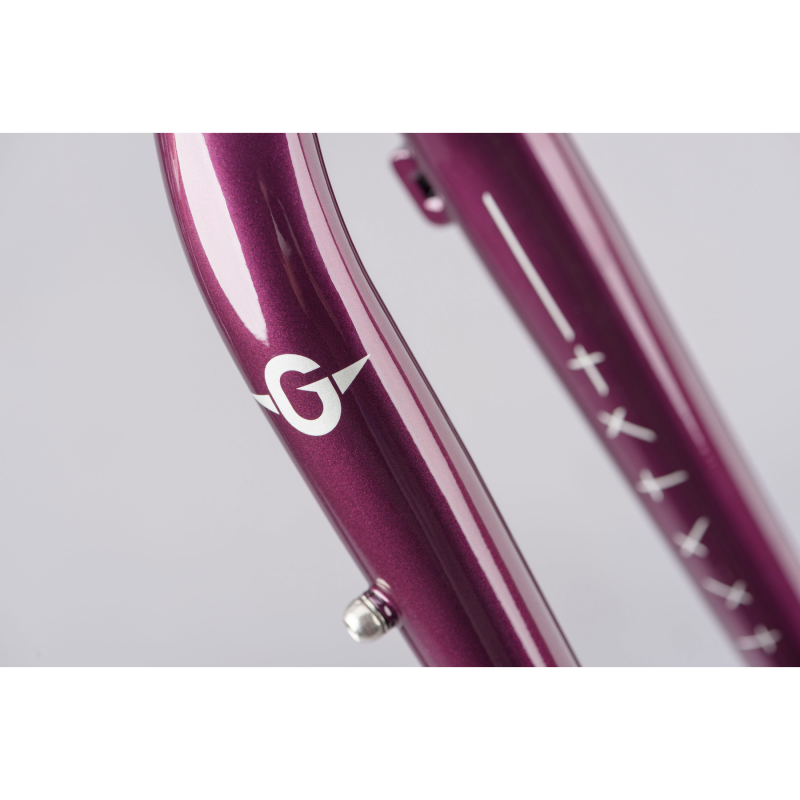

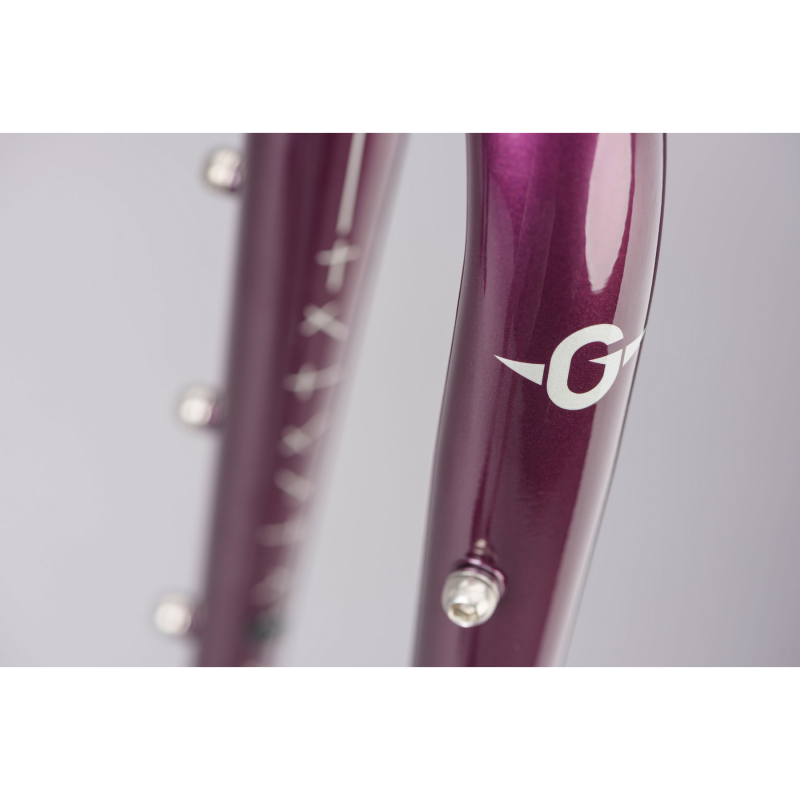

Fork Chromoly Disc Fork With Anything Cage Mounts With 12mm Thru Axle

Headset PT-1767D EC34 Upper / EC34 Lower

Hanger GNSPR40002

ADDITONAL INFO

Warranty Lifetime for Frame and Fork

Weight 3.98kg

Frame Weight Limit: No Weight Limit

Fork Steerer Size 1 1/8”

Fork Spec:

XS A-C = 401 Offset = 50 Rake/ Trail = 69

SM A-C = 401 Offset = 50 Rake/ Trail = 69

MD A-C = 401 Offset = 50 Rake/ Trail = 66

LG A-C = 401 Offset = 50 Rake/ Trail = 66

XL A-C = 401 Offset = 50 Rake/ Trail = 63

Wheel Size Options 700c, 650b

Max Tyre Clearance 650B rear 44c/ front 50c 700c rear 45c/ front 50c

Hub Size/ Spacing Front 100mm, Rear 142mm

Brake Mount Type Flat Mount 140

Front Mech Size/ Compatibility Band On 28.6mm

Max Chainring Size 50/34, 42t

Seat Tube/Clamp Size 27.2mm/ 29.8mm

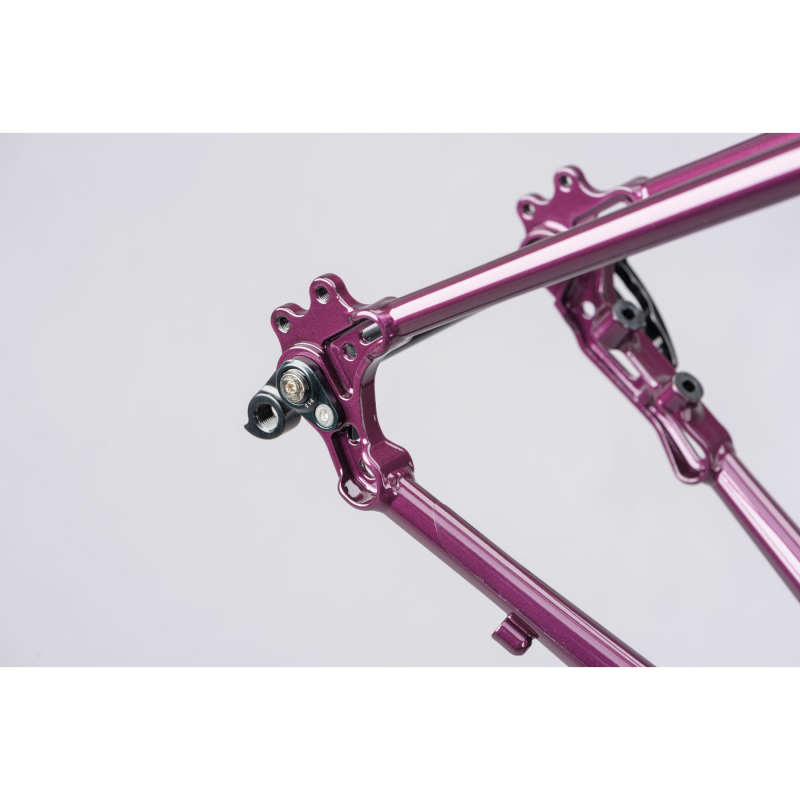

Mech Hanger Type & Part Code Replaceable - GNSPR40002

Colour Depeche Mauve

Colour Code Pantone 518 C

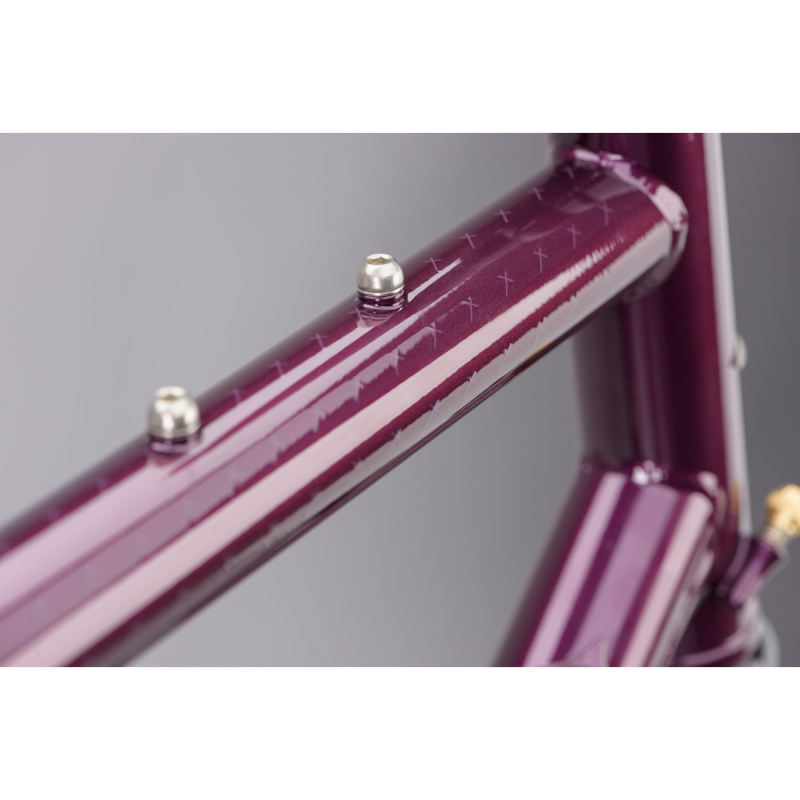

MOUNTS

Mudguard Mounts Yes

Rack Mounts Yes

Bottle Cage Mounts Yes

Additonal Mounts: Anything Cage Mounts

GEOMETRY XS S M L XL

Seat Tube 470 500 530 550 580

Top Tube 524 544 561 582 605

Frame Reach 365 375 385 395 405

Frame Stack 553 572 593 612 633

Head Tube 115 135 155 175 195

Head Angle 71 71 71.5 71.5 72

Seat Angle 74 73.5 73.5 73 72.5

Chainstay 430 430 430 430 430

BB Drop 73 73 73 73 73

Wheelbase 1007 1023 1035 1052 1063

Fork Offset 50 50 50 50 50

Standover 761 784 808 826 850
